Compute Spectro-Spatial Decomposition (SSD) spatial filters#

In this example, we will compute spatial filters for retaining oscillatory brain activity and down-weighting 1/f background signals as proposed by [1]. The idea is to learn spatial filters that separate oscillatory dynamics from surrounding non-oscillatory noise based on the covariance in the frequency band of interest and the noise covariance based on surrounding frequencies.

# Author: Denis A. Engemann <denis.engemann@gmail.com>
#         Victoria Peterson <victoriapeterson09@gmail.com>
# License: BSD-3-Clause
# Copyright the MNE-Python contributors.

import matplotlib.pyplot as plt

import mne
from mne import Epochs
from mne.datasets.fieldtrip_cmc import data_path
from mne.decoding import SSD

Define parameters

fname = data_path() / "SubjectCMC.ds"

# Prepare data
raw = mne.io.read_raw_ctf(fname)
raw.crop(50.0, 110.0).load_data()  # crop for memory purposes
raw.resample(sfreq=250)

raw.pick_types(meg=True, ref_meg=False)

freqs_sig = 9, 12
freqs_noise = 8, 13


ssd = SSD(
    info=raw.info,
    reg="oas",
    sort_by_spectral_ratio=False,  # False for purpose of example.
    filt_params_signal=dict(
        l_freq=freqs_sig[0],
        h_freq=freqs_sig[1],
        l_trans_bandwidth=1,
        h_trans_bandwidth=1,
    ),
    filt_params_noise=dict(
        l_freq=freqs_noise[0],
        h_freq=freqs_noise[1],
        l_trans_bandwidth=1,
        h_trans_bandwidth=1,
    ),
)
ssd.fit(X=raw.get_data())

ds directory : /home/circleci/mne_data/MNE-fieldtrip_cmc-data/SubjectCMC.ds
    res4 data read.
    hc data read.
    Separate EEG position data file not present.
    Quaternion matching (desired vs. transformed):
       0.33   78.32    0.00 mm <->    0.33   78.32    0.00 mm (orig :  -71.62   40.46 -256.48 mm) diff =    0.000 mm
      -0.33  -78.32   -0.00 mm <->   -0.33  -78.32   -0.00 mm (orig :   39.27  -70.16 -258.60 mm) diff =    0.000 mm
     114.65    0.00   -0.00 mm <->  114.65    0.00   -0.00 mm (orig :   64.35   66.64 -262.01 mm) diff =    0.000 mm
    Coordinate transformations established.
    Polhemus data for 3 HPI coils added
    Device coordinate locations for 3 HPI coils added
Picked positions of 4 EEG channels from channel info
    4 EEG locations added to Polhemus data.
    Measurement info composed.
Finding samples for /home/circleci/mne_data/MNE-fieldtrip_cmc-data/SubjectCMC.ds/SubjectCMC.meg4:
    System clock channel is available, checking which samples are valid.
    75 x 12000 = 911610 samples from 191 chs
    390 samples omitted at the end
Current compensation grade : 0
Reading 0 ... 72000  =      0.000 ...    60.000 secs...
29 events found on stim channel STIM
Event IDs: [   196608    262144    327680    393216    458752  67108864  67174400
 134742016 136314880 268435456]
29 events found on stim channel STIM
Event IDs: [   196608    262144    327680    393216    458752  67108864  67174400
 134742016 136314880 268435456]
NOTE: pick_types() is a legacy function. New code should use inst.pick(...).
Removing 5 compensators from info because not all compensation channels were picked.
Setting up band-pass filter from 9 - 12 Hz

FIR filter parameters
---------------------
Designing a one-pass, zero-phase, non-causal bandpass filter:
- Windowed time-domain design (firwin) method
- Hamming window with 0.0194 passband ripple and 53 dB stopband attenuation
- Lower passband edge: 9.00
- Lower transition bandwidth: 1.00 Hz (-6 dB cutoff frequency: 8.50 Hz)
- Upper passband edge: 12.00 Hz
- Upper transition bandwidth: 1.00 Hz (-6 dB cutoff frequency: 12.50 Hz)
- Filter length: 825 samples (3.300 s)

[Parallel(n_jobs=1)]: Done  17 tasks      | elapsed:    0.0s
[Parallel(n_jobs=1)]: Done  71 tasks      | elapsed:    0.1s
Setting up band-pass filter from 8 - 13 Hz

FIR filter parameters
---------------------
Designing a one-pass, zero-phase, non-causal bandpass filter:
- Windowed time-domain design (firwin) method
- Hamming window with 0.0194 passband ripple and 53 dB stopband attenuation
- Lower passband edge: 8.00
- Lower transition bandwidth: 1.00 Hz (-6 dB cutoff frequency: 7.50 Hz)
- Upper passband edge: 13.00 Hz
- Upper transition bandwidth: 1.00 Hz (-6 dB cutoff frequency: 13.50 Hz)
- Filter length: 825 samples (3.300 s)

[Parallel(n_jobs=1)]: Done  17 tasks      | elapsed:    0.0s
[Parallel(n_jobs=1)]: Done  71 tasks      | elapsed:    0.0s
Computing rank from data with rank='full'
    MAG: rank 151 from info
Reducing data rank from 151 -> 151
Estimating covariance using OAS
Done.
Computing rank from data with rank='full'
    MAG: rank 151 from info
Reducing data rank from 151 -> 151
Estimating covariance using OAS
Done.
Computing rank from covariance with rank=None
    Using tolerance 1.2e-14 (2.2e-16 eps * 151 dim * 0.37  max singular value)
    Estimated rank (mag): 151
    MAG: rank 151 computed from 151 data channels with 0 projectors
Computing rank from covariance with rank=None
    Using tolerance 2.9e-15 (2.2e-16 eps * 151 dim * 0.086  max singular value)
    Estimated rank (mag): 151
    MAG: rank 151 computed from 151 data channels with 0 projectors
Preserving covariance rank (151)
Done.

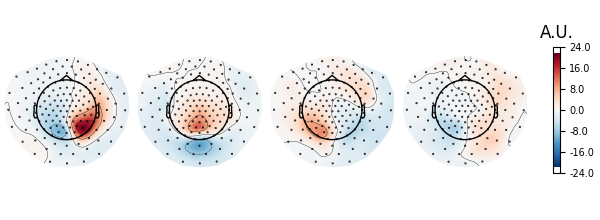

Let’s investigate spatial filter with max power ratio. We will first inspect the topographies. According to Nikulin et al. 2011 this is done by either inverting the filters (W^{-1}) or by multiplying the noise cov with the filters Eq. (22) (C_n W)^t. We rely on the inversion approach here.

pattern = mne.EvokedArray(data=ssd.patterns_[:4].T, info=ssd.info)
pattern.plot_topomap(units=dict(mag="A.U."), time_format="")

# The topographies suggest that we picked up a parietal alpha generator.

# Transform
ssd_sources = ssd.transform(X=raw.get_data())

# Get psd of SSD-filtered signals.
psd, freqs = mne.time_frequency.psd_array_welch(
    ssd_sources, sfreq=raw.info["sfreq"], n_fft=4096
)

# Get spec_ratio information (already sorted).
# Note that this is not necessary if sort_by_spectral_ratio=True (default).
spec_ratio, sorter = ssd.get_spectral_ratio(ssd_sources)

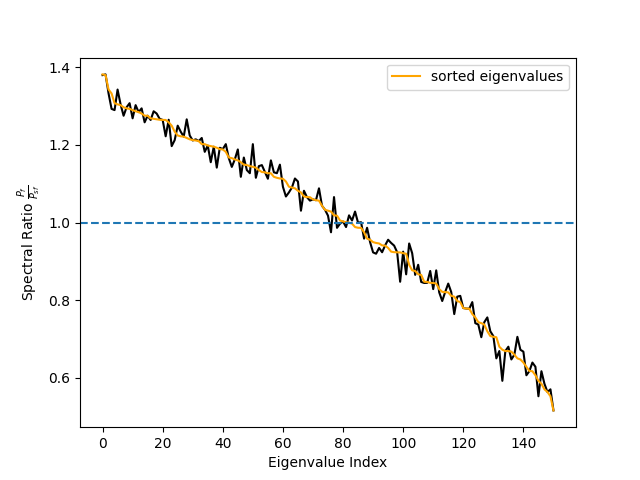

# Plot spectral ratio (see Eq. 24 in Nikulin 2011).
fig, ax = plt.subplots(1)
ax.plot(spec_ratio, color="black")
ax.plot(spec_ratio[sorter], color="orange", label="sorted eigenvalues")
ax.set_xlabel("Eigenvalue Index")
ax.set_ylabel(r"Spectral Ratio $\frac{P_f}{P_{sf}}$")
ax.legend()
ax.axhline(1, linestyle="--")

# We can see that the initial sorting based on the eigenvalues
# was already quite good. However, when using few components only
# the sorting might make a difference.

Effective window size : 16.384 (s)
Effective window size : 1.000 (s)

Let’s also look at the power spectrum of that source and compare it to to the power spectrum of the source with lowest SNR.

below50 = freqs < 50
# for highlighting the freq. band of interest
bandfilt = (freqs_sig[0] <= freqs) & (freqs <= freqs_sig[1])
fig, ax = plt.subplots(1)
ax.loglog(freqs[below50], psd[0, below50], label="max SNR")
ax.loglog(freqs[below50], psd[-1, below50], label="min SNR")
ax.loglog(freqs[below50], psd[:, below50].mean(axis=0), label="mean")
ax.fill_between(freqs[bandfilt], 0, 10000, color="green", alpha=0.15)
ax.set_xlabel("log(frequency)")
ax.set_ylabel("log(power)")
ax.legend()

# We can clearly see that the selected component enjoys an SNR that is
# way above the average power spectrum.

Epoched data#

Although we suggest to use this method before epoching, there might be some situations in which data can only be treated by chunks.

# Build epochs as sliding windows over the continuous raw file.
events = mne.make_fixed_length_events(raw, id=1, duration=5.0, overlap=0.0)

# Epoch length is 5 seconds.
epochs = Epochs(raw, events, tmin=0.0, tmax=5, baseline=None, preload=True)

ssd_epochs = SSD(
    info=epochs.info,
    reg="oas",
    filt_params_signal=dict(
        l_freq=freqs_sig[0],
        h_freq=freqs_sig[1],
        l_trans_bandwidth=1,
        h_trans_bandwidth=1,
    ),
    filt_params_noise=dict(
        l_freq=freqs_noise[0],
        h_freq=freqs_noise[1],
        l_trans_bandwidth=1,
        h_trans_bandwidth=1,
    ),
)
ssd_epochs.fit(X=epochs.get_data(copy=False))

# Plot topographies.
pattern_epochs = mne.EvokedArray(data=ssd_epochs.patterns_[:4].T, info=ssd_epochs.info)
pattern_epochs.plot_topomap(units=dict(mag="A.U."), time_format="")

Not setting metadata
12 matching events found
No baseline correction applied
0 projection items activated
Using data from preloaded Raw for 12 events and 1251 original time points ...
1 bad epochs dropped
Setting up band-pass filter from 9 - 12 Hz

FIR filter parameters
---------------------
Designing a one-pass, zero-phase, non-causal bandpass filter:
- Windowed time-domain design (firwin) method
- Hamming window with 0.0194 passband ripple and 53 dB stopband attenuation
- Lower passband edge: 9.00
- Lower transition bandwidth: 1.00 Hz (-6 dB cutoff frequency: 8.50 Hz)
- Upper passband edge: 12.00 Hz
- Upper transition bandwidth: 1.00 Hz (-6 dB cutoff frequency: 12.50 Hz)
- Filter length: 825 samples (3.300 s)

[Parallel(n_jobs=1)]: Done  17 tasks      | elapsed:    0.0s
[Parallel(n_jobs=1)]: Done  71 tasks      | elapsed:    0.0s
[Parallel(n_jobs=1)]: Done 161 tasks      | elapsed:    0.0s
[Parallel(n_jobs=1)]: Done 287 tasks      | elapsed:    0.1s
[Parallel(n_jobs=1)]: Done 449 tasks      | elapsed:    0.1s
[Parallel(n_jobs=1)]: Done 647 tasks      | elapsed:    0.1s
[Parallel(n_jobs=1)]: Done 881 tasks      | elapsed:    0.2s
[Parallel(n_jobs=1)]: Done 1151 tasks      | elapsed:    0.2s
[Parallel(n_jobs=1)]: Done 1457 tasks      | elapsed:    0.3s
Setting up band-pass filter from 8 - 13 Hz

FIR filter parameters
---------------------
Designing a one-pass, zero-phase, non-causal bandpass filter:
- Windowed time-domain design (firwin) method
- Hamming window with 0.0194 passband ripple and 53 dB stopband attenuation
- Lower passband edge: 8.00
- Lower transition bandwidth: 1.00 Hz (-6 dB cutoff frequency: 7.50 Hz)
- Upper passband edge: 13.00 Hz
- Upper transition bandwidth: 1.00 Hz (-6 dB cutoff frequency: 13.50 Hz)
- Filter length: 825 samples (3.300 s)

[Parallel(n_jobs=1)]: Done  17 tasks      | elapsed:    0.0s
[Parallel(n_jobs=1)]: Done  71 tasks      | elapsed:    0.0s
[Parallel(n_jobs=1)]: Done 161 tasks      | elapsed:    0.0s
[Parallel(n_jobs=1)]: Done 287 tasks      | elapsed:    0.0s
[Parallel(n_jobs=1)]: Done 449 tasks      | elapsed:    0.1s
[Parallel(n_jobs=1)]: Done 647 tasks      | elapsed:    0.1s
[Parallel(n_jobs=1)]: Done 881 tasks      | elapsed:    0.2s
[Parallel(n_jobs=1)]: Done 1151 tasks      | elapsed:    0.2s
[Parallel(n_jobs=1)]: Done 1457 tasks      | elapsed:    0.3s
Computing rank from data with rank='full'
    MAG: rank 151 from info
Reducing data rank from 151 -> 151
Estimating covariance using OAS
Done.
Computing rank from data with rank='full'
    MAG: rank 151 from info
Reducing data rank from 151 -> 151
Estimating covariance using OAS
Done.
Computing rank from covariance with rank=None
    Using tolerance 1.3e-14 (2.2e-16 eps * 151 dim * 0.38  max singular value)
    Estimated rank (mag): 151
    MAG: rank 151 computed from 151 data channels with 0 projectors
Computing rank from covariance with rank=None
    Using tolerance 3e-15 (2.2e-16 eps * 151 dim * 0.09  max singular value)
    Estimated rank (mag): 151
    MAG: rank 151 computed from 151 data channels with 0 projectors
Preserving covariance rank (151)
Effective window size : 1.000 (s)
Done.

References#

Total running time of the script: (0 minutes 10.055 seconds)
