Adaptive ASR for changing recording statistics

Can adaptive calibration follow a change in the clean recording statistics while continuing to suppress transient artifacts? This controlled example contains a baseline calibration chunk, a changed-regime adaptation chunk, and an independent changed-regime test chunk. Frozen ASR is compared with AdaptiveASR after one adaptation chunk.

The quiet changed-regime test data are the preservation endpoint. Error in the independent test burst windows is the artifact endpoint. The comparison illustrates the streaming fit / partial_fit / transform lifecycle on one controlled substrate; it is not a benchmark of adaptive variants.

The use case is motivated by adaptive ASR research [1] and the standard ASR evaluation [2].

References

[1]

Bo-Yu Tsai, Sandeep Vara Sankar Diddi, Li-Wei Ko, Shuu-Jiun Wang, Chi-Yuan Chang, and Tzyy-Ping Jung. Development of an adaptive artifact subspace reconstruction based on hebbian/anti-hebbian learning networks for enhancing bci performance. IEEE Transactions on Neural Networks and Learning Systems, 35(1):348–361, 2024. doi:10.1109/TNNLS.2022.3174528.

[2]

Chi-Yuan Chang, Sheng-Hsiou Hsu, Luca Pion-Tonachini, and Tzyy-Ping Jung. Evaluation of artifact subspace reconstruction for automatic artifact components removal in multi-channel eeg recordings. IEEE Transactions on Biomedical Engineering, 67(4):1114–1121, 2020. doi:10.1109/TBME.2019.2930186.

Create independent baseline, adaptation, and test chunks

import numpy as np

from mne_denoise.asr import ASR, AdaptiveASR
from mne_denoise.qa import rms_change
from mne_denoise.viz import plot_signal_overlay

rng = np.random.default_rng(17)
sfreq = 200.0
n_channels = 8
segment_seconds = 12.0
segment_samples = int(round(segment_seconds * sfreq))
test_times = np.arange(segment_samples) / sfreq

mixing = rng.standard_normal((n_channels, 3))
mixing /= np.linalg.norm(mixing, axis=0, keepdims=True)


def make_regime(rng, mixing, time, amplitudes, noise_scale):
    """Generate one independent realization of a covariance regime."""
    frequencies = (10.0, 6.0, 0.8)
    sources = np.asarray(
        [
            amplitude
            * np.sin(2.0 * np.pi * frequency * time + rng.uniform(0.0, 2.0 * np.pi))
            + 0.05 * rng.standard_normal(time.size)
            for frequency, amplitude in zip(frequencies, amplitudes)
        ]
    )
    sensor_noise = noise_scale * rng.standard_normal((mixing.shape[0], time.size))
    return mixing @ sources + sensor_noise


baseline = make_regime(
    rng,
    mixing,
    test_times,
    amplitudes=(0.35, 0.20, 0.08),
    noise_scale=0.05,
)
adaptation = make_regime(
    rng,
    mixing,
    test_times,
    amplitudes=(0.80, 0.45, 0.20),
    noise_scale=0.12,
)
test_clean = make_regime(
    rng,
    mixing,
    test_times,
    amplitudes=(0.80, 0.45, 0.20),
    noise_scale=0.12,
)

# Artifacts are injected only into the independent test chunk.
test_contaminated = test_clean.copy()
artifact_mask = np.zeros(segment_samples, dtype=bool)
artifact_spatial = rng.standard_normal(n_channels)
artifact_spatial /= np.linalg.norm(artifact_spatial)
for onset in (2.0, 6.0, 10.0):
    start = int(round(onset * sfreq))
    stop = min(segment_samples, start + int(round(0.6 * sfreq)))
    artifact_mask[start:stop] = True
    artifact_source = rng.standard_normal(stop - start)
    test_contaminated[:, start:stop] += 5.0 * np.outer(
        artifact_spatial, artifact_source
    )

# The adaptation and test chunks are separate calls to ``make_regime`` with
# the same changed-regime parameters, so they have the same regime but
# independent phases, noise, and time-series realizations.

Calibrate once, adapt once, and evaluate only on the independent test chunk

AdaptiveASR uses unfiltered statistics internally. Match that setting in the frozen comparator so the comparison isolates the calibration update.

frozen = ASR(
    sfreq=sfreq,
    cutoff=20.0,
    calibration="manual",
    filter_kind="none",
    picks=None,
    verbose=False,
)
frozen.fit(baseline)
frozen_clean = np.asarray(frozen.transform(test_contaminated))

adaptive = AdaptiveASR(
    sfreq=sfreq,
    cutoff=20.0,
    variant="psw",
    picks=None,
    verbose=False,
)
adaptive.fit(baseline)
adaptive.partial_fit(adaptation)
adaptive_clean = np.asarray(adaptive.transform(test_contaminated))

artifact_before = rms_change(
    test_contaminated[:, artifact_mask],
    test_clean[:, artifact_mask],
)
frozen_artifact_after = rms_change(
    frozen_clean[:, artifact_mask],
    test_clean[:, artifact_mask],
)
adaptive_artifact_after = rms_change(
    adaptive_clean[:, artifact_mask],
    test_clean[:, artifact_mask],
)
frozen_artifact_residual_ratio = frozen_artifact_after / artifact_before
adaptive_artifact_residual_ratio = adaptive_artifact_after / artifact_before

quiet_mask = ~artifact_mask
quiet_scale = np.sqrt(np.mean(test_clean[:, quiet_mask] ** 2))
frozen_quiet_error = (
    rms_change(
        frozen_clean[:, quiet_mask],
        test_clean[:, quiet_mask],
    )
    / quiet_scale
)
adaptive_quiet_error = (
    rms_change(
        adaptive_clean[:, quiet_mask],
        test_clean[:, quiet_mask],
    )
    / quiet_scale
)

print(
    "Frozen ASR: "
    f"artifact residual ratio={frozen_artifact_residual_ratio:.3f}, "
    f"quiet test error={frozen_quiet_error:.3f}"
)
print(
    "Adaptive ASR: "
    f"artifact residual ratio={adaptive_artifact_residual_ratio:.3f}, "
    f"quiet test error={adaptive_quiet_error:.3f}"
)
print("Adaptation chunks supplied: 1")

Frozen ASR: artifact residual ratio=0.152, quiet test error=0.985
Adaptive ASR: artifact residual ratio=0.049, quiet test error=0.117
Adaptation chunks supplied: 1

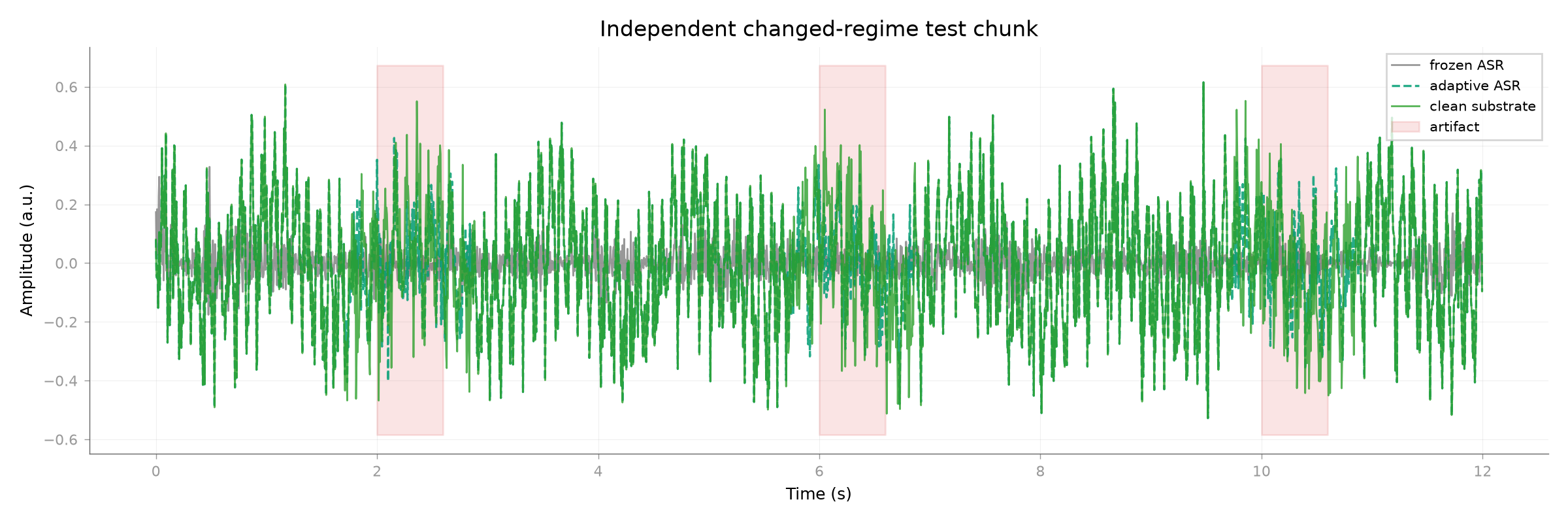

Compare frozen and adaptive outputs on the independent test chunk

channel = int(np.argmax(np.abs(artifact_spatial)))
plot_signal_overlay(
    frozen_clean,
    adaptive_clean,
    test_times,
    pick=channel,
    scale_after=False,
    before_label="frozen ASR",
    after_label="adaptive ASR",
    reference=test_clean[channel],
    reference_label="clean substrate",
    highlight_mask=artifact_mask,
    highlight_label="artifact",
    x_label="Time (s)",
    y_label="Amplitude (a.u.)",
    title="Independent changed-regime test chunk",
    show=False,
)

<Figure size 2400x800 with 1 Axes>
