Attenuating broadband muscle artifact with BSS-CCA#
Can lagged CCA separate a deliberately added broadband muscle-like process from a cleaner EEG substrate while preserving data outside the artifact periods? This example uses a real MNE Sample EEG recording with two controlled, spatially structured muscle-like processes active in known time windows.
BSS-CCA orders components by their lagged temporal correlation. Broadband muscle-like activity can occupy the low-correlation end, but low correlation is a selection heuristic rather than an artifact label. The unmodified average-referenced recording is a reference substrate for this controlled comparison, not noise-free neural ground truth.
Because this controlled construction injects two independent muscle-like
processes, we use n_remove=2 as a transparent operating choice. This does
not imply that CCA components correspond one-to-one with the injected sources,
and real recordings require independent validation of the removal rule.
The use case is motivated by [1][2].
References#
Load a band-limited EEG substrate#
import mne
import numpy as np
from scipy.signal import butter, sosfiltfilt
from mne_denoise.bss_cca import BSSCCA
from mne_denoise.qa import rms_change
from mne_denoise.viz import plot_psd_comparison, plot_signal_overlay
sample_path = mne.datasets.sample.data_path()
raw = mne.io.read_raw_fif(
sample_path / "MEG" / "sample" / "sample_audvis_raw.fif",
preload=False,
verbose="ERROR",
)
raw.pick("eeg", exclude="bads").crop(0.0, 20.0).load_data()
raw.resample(250.0, verbose="ERROR")
raw.filter(1.0, 45.0, verbose="ERROR")
raw.set_eeg_reference("average", projection=False, verbose="ERROR")
# The unmodified average-referenced recording is the reference substrate, not
# perfect neural ground truth.
reference_data = raw.get_data()
sfreq = raw.info["sfreq"]
n_channels = reference_data.shape[0]
n_times = reference_data.shape[1]
Reading 0 ... 12012 = 0.000 ... 20.000 secs...
Add two known broadband muscle-like processes#
rng = np.random.default_rng(2006)
muscle_filter = butter(
4,
(25.0, 80.0),
btype="bandpass",
fs=sfreq,
output="sos",
)
muscle_sources = sosfiltfilt(
muscle_filter,
rng.standard_normal((2, n_times)),
axis=-1,
)
muscle_sources /= np.std(muscle_sources, axis=1, keepdims=True)
artifact_mask = np.zeros(n_times, dtype=bool)
artifact_envelope = np.zeros(n_times)
for start_seconds, stop_seconds in ((4.0, 6.0), (12.0, 14.0)):
start = int(round(start_seconds * sfreq))
stop = int(round(stop_seconds * sfreq))
artifact_mask[start:stop] = True
artifact_envelope[start:stop] = np.hanning(stop - start)
muscle_sources *= artifact_envelope
artifact_spatial = rng.standard_normal((n_channels, 2))
artifact_spatial -= artifact_spatial.mean(axis=0, keepdims=True)
artifact_spatial /= np.linalg.norm(artifact_spatial, axis=0, keepdims=True)
channel_scale = np.median(np.std(reference_data, axis=1))
artifact_multiplier = 4.0
artifact_data = (
artifact_multiplier * channel_scale * (artifact_spatial @ muscle_sources)
)
corrupted_data = reference_data + artifact_data
corrupted = mne.io.RawArray(
corrupted_data,
raw.info.copy(),
first_samp=raw.first_samp,
verbose=False,
)
corrupted.set_annotations(raw.annotations.copy())
Fit BSS-CCA with the known controlled component count#
model = BSSCCA(
lag_samples=1,
n_remove=2,
preserve_mean=True,
verbose=False,
)
cleaned = model.fit_transform(corrupted)
cleaned_data = cleaned.get_data()
Evaluate artifact attenuation and quiet-signal preservation#
artifact_before = rms_change(
corrupted_data[:, artifact_mask],
reference_data[:, artifact_mask],
)
artifact_after = rms_change(
cleaned_data[:, artifact_mask],
reference_data[:, artifact_mask],
)
artifact_residual_ratio = artifact_after / artifact_before
quiet_mask = ~artifact_mask
quiet_error = rms_change(
cleaned_data[:, quiet_mask],
reference_data[:, quiet_mask],
)
quiet_scale = np.sqrt(np.mean(reference_data[:, quiet_mask] ** 2))
quiet_relative_error = quiet_error / quiet_scale
removed_mask = ~model.kept_mask_
removed_correlations = model.correlations_[removed_mask]
removed_autocorrelations = model.autocorrelations_[removed_mask]
print(f"Artifact residual ratio: {artifact_residual_ratio:.3f}")
print(f"Quiet-period relative error: {quiet_relative_error:.3f}")
print(f"Number of components removed: {model.n_removed_}")
print(
f"Canonical correlations of removed components: {np.round(removed_correlations, 3)}"
)
print(
"Signed lagged autocorrelations of removed components: "
f"{np.round(removed_autocorrelations, 3)}"
)
Artifact residual ratio: 0.110
Quiet-period relative error: 0.031
Number of components removed: 2
Canonical correlations of removed components: [0.286 0.244]
Signed lagged autocorrelations of removed components: [0.281 0.239]

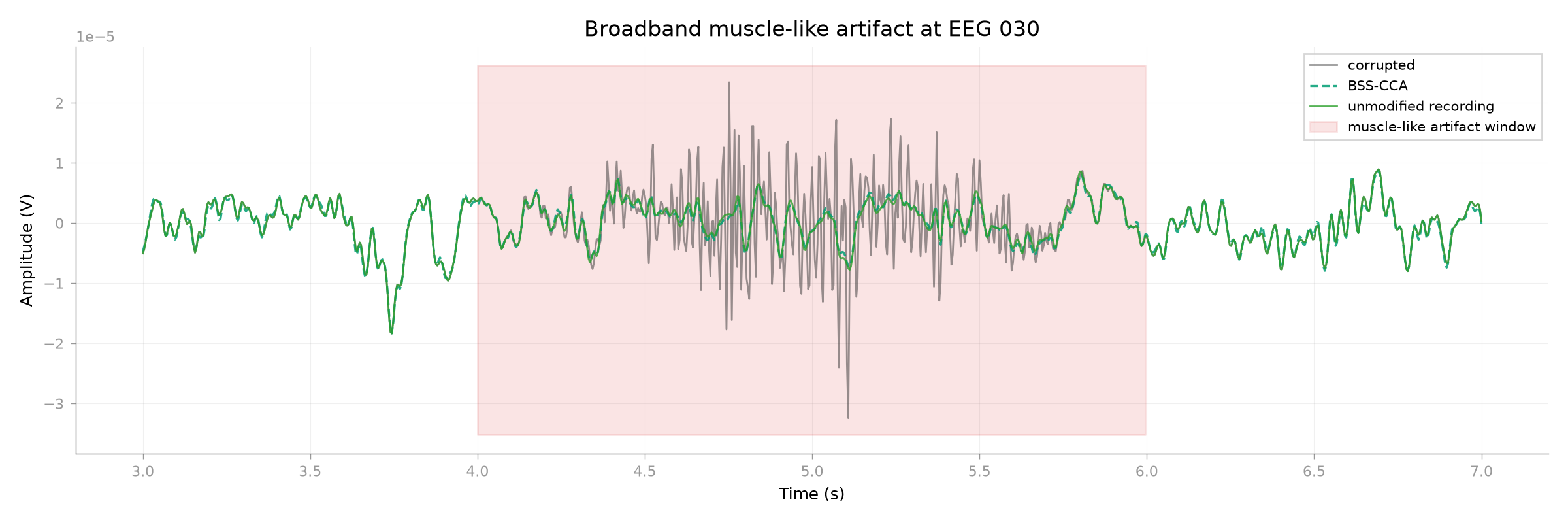

Inspect a muscle-dominated channel#
channel_index = int(np.argmax(np.linalg.norm(artifact_data[:, artifact_mask], axis=1)))
channel_name = raw.ch_names[channel_index]
plot_signal_overlay(
corrupted,
cleaned,
raw.times,
pick=channel_name,
start=3.0,
stop=7.0,
scale_after=False,
before_label="corrupted",
after_label="BSS-CCA",
reference=reference_data[channel_index],
reference_label="unmodified recording",
highlight_mask=artifact_mask,
highlight_label="muscle-like artifact window",
x_label="Time (s)",
y_label="Amplitude (V)",
title=f"Broadband muscle-like artifact at {channel_name}",
show=False,
)
<Figure size 2400x800 with 1 Axes>

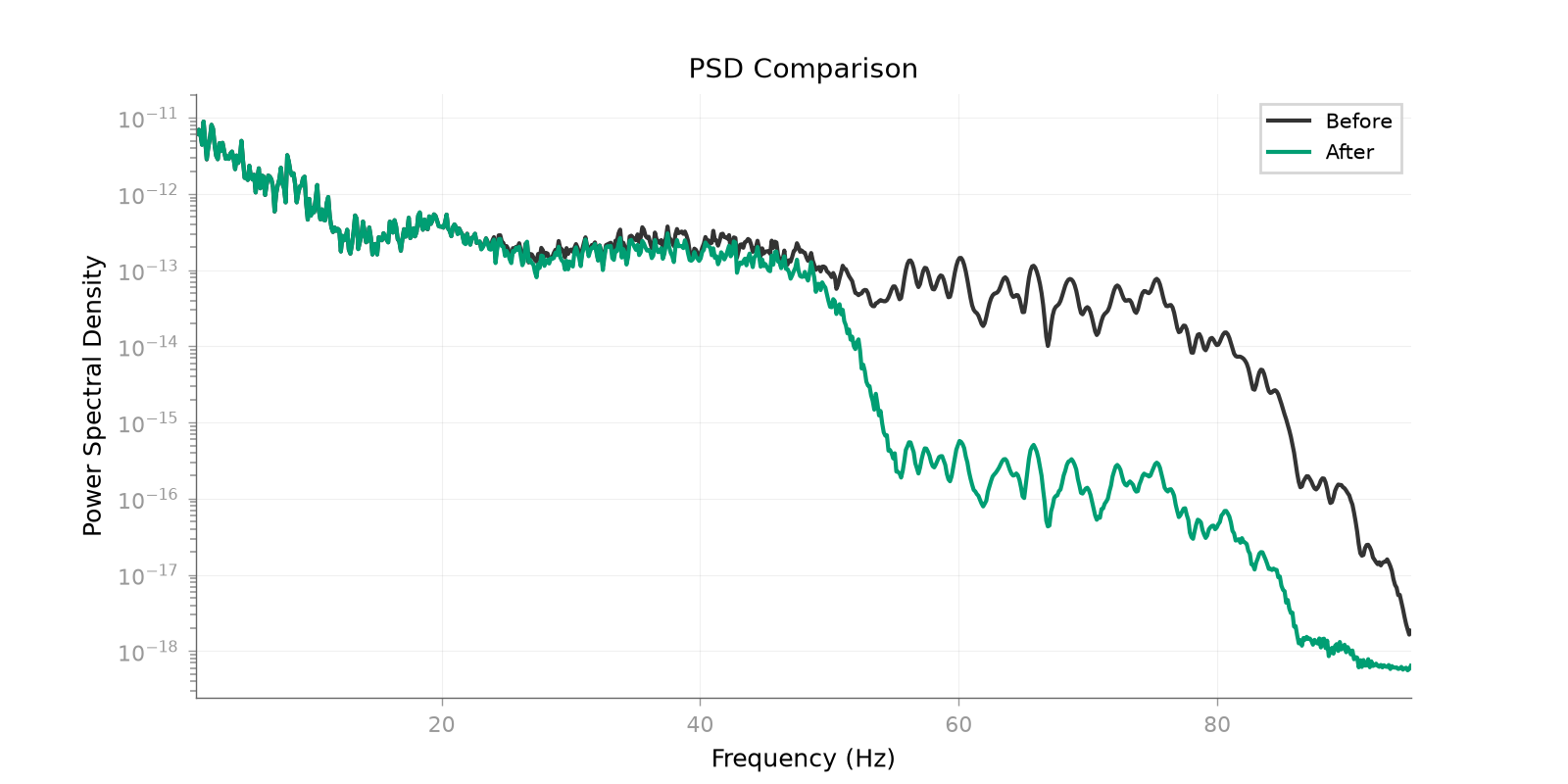

Compare broadband power before and after#
PSD attenuation is a useful diagnostic for the broadband use case, but the controlled reference comparison above is the preservation endpoint.
plot_psd_comparison(
corrupted,
cleaned,
sfreq=sfreq,
fmin=1.0,
fmax=95.0,
picks="eeg",
show=False,
)
Effective window size : 8.192 (s)
Effective window size : 8.192 (s)
<Figure size 1600x800 with 1 Axes>
