Suppressing sensor-specific noise with SNS

Can SNS recover channels contaminated by independent sensor noise while making relatively small changes to channels that were not deliberately corrupted? This example uses an MNE Sample EEG recording to make the spatial covariance realistic, then adds known broadband noise to two sensors.

SNS relies on the signal of interest being spatially redundant across sensors while the targeted noise is specific to individual sensors. It is therefore not a generic artifact-removal method: a source or artifact shared across the array does not satisfy the assumption. The unmodified filtered recording is a reference substrate for this controlled comparison, not noise-free neural ground truth.

The use case is motivated by [1].

References

[1]

Alain de Cheveigné and Jonathan Z. Simon. Sensor noise suppression. Journal of Neuroscience Methods, 168(1):195–202, 2008. doi:10.1016/j.jneumeth.2007.09.012.

Load a realistic EEG substrate

import mne
import numpy as np

from mne_denoise.progress import ProgressEvent
from mne_denoise.qa import rms_change
from mne_denoise.sns import SNS
from mne_denoise.viz import plot_signal_overlay

sample_path = mne.datasets.sample.data_path()
raw = mne.io.read_raw_fif(
    sample_path / "MEG" / "sample" / "sample_audvis_raw.fif",
    preload=False,
    verbose="ERROR",
)
raw.pick("eeg", exclude="bads").crop(0.0, 20.0).load_data()
raw.resample(200.0, verbose="ERROR")
raw.filter(1.0, 45.0, verbose="ERROR")

# The untouched recording is the reference substrate for both endpoints below.
reference_data = raw.get_data()

Reading 0 ... 12012  =      0.000 ...    20.000 secs...

Plant independent sensor-specific noise

rng = np.random.default_rng(2008)
corrupted_data = reference_data.copy()
channel_scale = np.median(np.std(reference_data, axis=1))
corrupted_indices = np.array([5, reference_data.shape[0] - 6])
noise_multiplier = 3.0

for index in corrupted_indices:
    corrupted_data[index] += (
        noise_multiplier * channel_scale * rng.standard_normal(raw.n_times)
    )

corrupted = mne.io.RawArray(
    corrupted_data,
    raw.info.copy(),
    first_samp=raw.first_samp,
    verbose=False,
)
corrupted.set_annotations(raw.annotations.copy())
corrupted_channel_names = [raw.ch_names[index] for index in corrupted_indices]
untouched_indices = np.setdiff1d(np.arange(reference_data.shape[0]), corrupted_indices)

Fit SNS and evaluate recovery and preservation

sns = SNS(
    preserve_mean=True,
    verbose=False,
)
# In interactive use, this callback slot can receive
# mne_denoise.progress.TqdmProgress when the optional ``progress`` extra is
# installed.
progress_events: list[ProgressEvent] = []
cleaned = sns.fit_transform(corrupted, callback=progress_events.append)
cleaned_data = cleaned.get_data()

first_event = progress_events[0]
last_event = progress_events[-1]
print(
    "Progress callback: "
    f"{len(progress_events)} events, "
    f"{first_event.method}/{first_event.stage}, "
    f"final={last_event.current}/{last_event.total}"
)

corrupted_error = rms_change(
    corrupted_data[corrupted_indices],
    reference_data[corrupted_indices],
)
cleaned_error = rms_change(
    cleaned_data[corrupted_indices],
    reference_data[corrupted_indices],
)
reference_scale = np.sqrt(np.mean(reference_data[corrupted_indices] ** 2))
corrupted_relative_error = corrupted_error / reference_scale
cleaned_relative_error = cleaned_error / reference_scale

untouched_change = rms_change(
    cleaned_data[untouched_indices],
    reference_data[untouched_indices],
)
untouched_scale = np.sqrt(np.mean(reference_data[untouched_indices] ** 2))
untouched_relative_change = untouched_change / untouched_scale

print(f"Deliberately corrupted channels: {corrupted_channel_names}")
print(f"Corrupted-channel error before SNS: {corrupted_relative_error:.3f}")
print(f"Corrupted-channel error after SNS:  {cleaned_relative_error:.3f}")
print(f"Untouched-channel relative change:  {untouched_relative_change:.3f}")
print(f"Effective neighbor count:           {sns.n_neighbors_}")

Progress callback: 59 events, sns/channel, final=59/59
Deliberately corrupted channels: ['EEG 006', 'EEG 055']
Corrupted-channel error before SNS: 2.190
Corrupted-channel error after SNS:  0.307
Untouched-channel relative change:  0.201
Effective neighbor count:           58

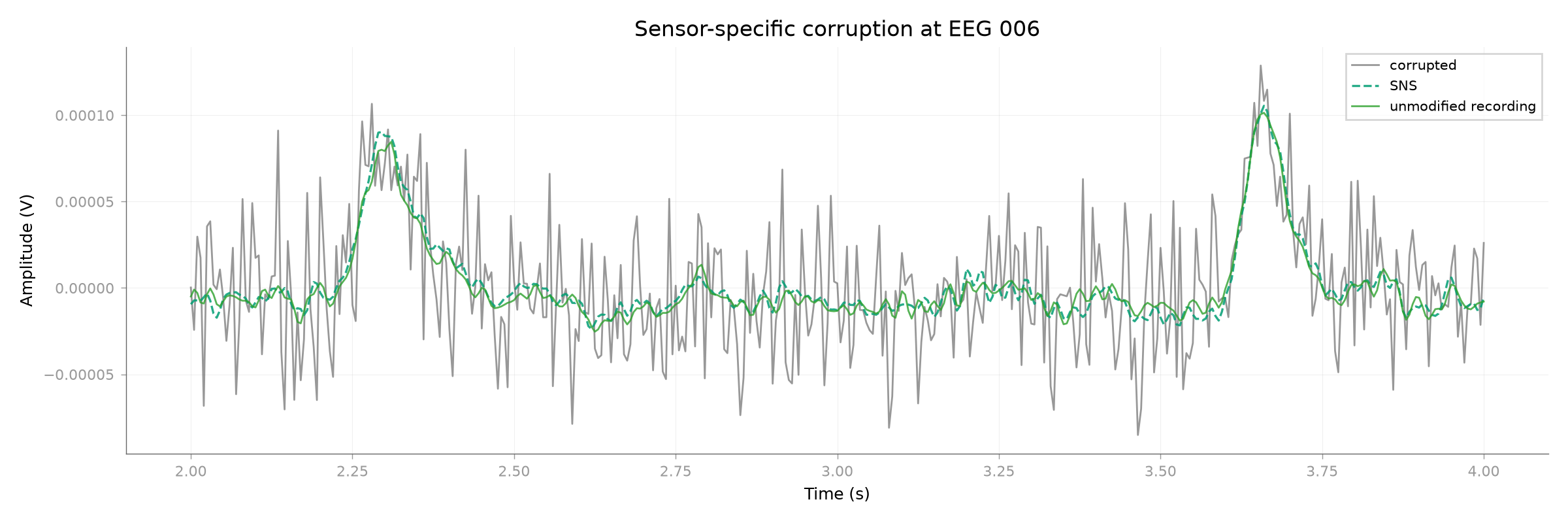

Inspect one reconstructed sensor

channel_index = int(corrupted_indices[0])
plot_signal_overlay(
    corrupted,
    cleaned,
    raw.times,
    pick=corrupted_channel_names[0],
    start=2.0,
    stop=4.0,
    scale_after=False,
    before_label="corrupted",
    after_label="SNS",
    reference=reference_data[channel_index],
    reference_label="unmodified recording",
    x_label="Time (s)",
    y_label="Amplitude (V)",
    title=f"Sensor-specific corruption at {corrupted_channel_names[0]}",
    show=False,
)

<Figure size 2400x800 with 1 Axes>
