Removing a planted cardiac-locked artifact with DSS

Can a cardiac-locked DSS component learned from one interval attenuate a known planted cardiac artifact in independent held-out data while preserving the unmodified MNE Sample EEG substrate?

The MNE Sample recording supplies realistic EEG data and R-peak timing. A fixed rank-one QRS-like artifact is then planted at those detected peaks. The cardiac-removal operator is fitted only on the contaminated training interval, and the same fitted operator is applied to held-out contaminated data and to the corresponding held-out reference. Cardiac locking is a bias criterion, not an artifact identity label: real recordings can contain neural or other activity correlated with the cardiac cycle [1][2].

References

[1]

Jaakko Sarela and Harri Valpola. Denoising source separation. Journal of Machine Learning Research, 6(9):233–272, 2005. URL: https://jmlr.org/papers/v6/sarela05a.html.

[2]

Alain de Cheveigné and Jonathan Z. Simon. Denoising based on spatial filtering. Journal of Neuroscience Methods, 171(2):331–339, 2008. doi:10.1016/j.jneumeth.2008.03.015.

Load the MNE Sample substrate and detect real R peaks

import mne
import numpy as np
from mne.datasets import sample

from mne_denoise.dss import DSS, CycleAverageBias
from mne_denoise.qa import rms_change
from mne_denoise.viz import plot_evoked_gfp_comparison, plot_signal_overlay

sample_path = sample.data_path(update_path=False)
raw = mne.io.read_raw_fif(
    sample_path / "MEG" / "sample" / "sample_audvis_raw.fif",
    preload=False,
    verbose="ERROR",
)
raw.crop(0.0, 60.0, verbose="ERROR").load_data(verbose="ERROR")

# Detect the cardiac timing while MEG and the recording's ECG channel, when
# available, are still present. No artificial ECG channel is constructed.
ecg_events, _, _ = mne.preprocessing.find_ecg_events(
    raw,
    ch_name=None,
    verbose=False,
)

reference = raw.copy().pick("eeg", exclude="bads", verbose="ERROR")
reference.filter(1.0, 40.0, verbose="ERROR")
reference.set_eeg_reference("average", projection=False, verbose="ERROR")
reference_data = reference.get_data()
sfreq = float(reference.info["sfreq"])
n_channels = len(reference.ch_names)

Plant one rank-one QRS-like artifact at the detected peaks

qrs_window = (-0.10, 0.20)
qrs_start = int(round(qrs_window[0] * sfreq))
qrs_stop = int(round(qrs_window[1] * sfreq))
qrs_offsets = np.arange(qrs_start, qrs_stop)
qrs_times = qrs_offsets / sfreq
qrs_template = np.exp(-0.5 * ((qrs_times + 0.025) / 0.014) ** 2)
qrs_template -= 0.65 * np.exp(-0.5 * ((qrs_times - 0.040) / 0.024) ** 2)
qrs_template -= qrs_template.mean()
qrs_template /= np.sqrt(np.mean(qrs_template**2))

rng = np.random.default_rng(18)
cardiac_topography = rng.standard_normal(n_channels)
cardiac_topography -= cardiac_topography.mean()
cardiac_topography /= np.linalg.norm(cardiac_topography)

cardiac_waveform = np.zeros(reference.n_times)
r_peak_samples = ecg_events[:, 0].astype(int)
r_peak_indices = r_peak_samples - int(reference.first_samp)
complete_peak_mask = (r_peak_indices + qrs_start >= 0) & (
    r_peak_indices + qrs_stop <= reference.n_times
)
r_peak_samples = r_peak_samples[complete_peak_mask]
r_peak_indices = r_peak_indices[complete_peak_mask]
if len(r_peak_samples) < 8:
    raise RuntimeError(
        "The cropped Sample recording must provide at least eight complete "
        "R-peak windows for temporal training and held-out evaluation."
    )
for peak_index in r_peak_indices:
    cardiac_waveform[peak_index + qrs_start : peak_index + qrs_stop] += qrs_template
unscaled_artifact = cardiac_topography[:, np.newaxis] * cardiac_waveform

reference_centered = reference_data - np.median(
    reference_data,
    axis=1,
    keepdims=True,
)
robust_reference_scale = 1.4826 * np.median(np.abs(reference_centered))
if not np.isfinite(robust_reference_scale) or robust_reference_scale <= 0.0:
    raise RuntimeError("The Sample EEG robust reference scale must be positive.")
requested_artifact_to_reference_ratio = 8.0
artifact_scale_factor = (
    requested_artifact_to_reference_ratio
    * robust_reference_scale
    / np.sqrt(np.mean(qrs_template**2))
)
artifact_data = unscaled_artifact * artifact_scale_factor
contaminated_data = reference_data + artifact_data

contaminated = mne.io.RawArray(
    contaminated_data,
    reference.info.copy(),
    first_samp=reference.first_samp,
    verbose=False,
)
contaminated.set_annotations(reference.annotations.copy())

	General
	MNE object type	RawArray
	Measurement date	2002-12-03 at 19:01:10 UTC
	Participant	Unknown
	Experimenter	MEG
	Acquisition
	Duration	00:01:01 (HH:MM:SS)
	Sampling frequency	600.61 Hz
	Time points	36,038
	Channels
	EEG	59
	Head & sensor digitization	146 points
	Filters
	Highpass	1.00 Hz
	Lowpass	40.00 Hz

Split the recording in time before fitting

The first 30 seconds are training data and the second 30 seconds are held out. A one-sample adjustment makes the two public Raw crops half-open.

split_time = 30.0
train_contaminated = contaminated.copy().crop(
    tmin=0.0,
    tmax=split_time - 1.0 / sfreq,
)
held_out_contaminated = contaminated.copy().crop(
    tmin=split_time,
    tmax=60.0 - 1.0 / sfreq,
)
held_out_reference = reference.copy().crop(
    tmin=split_time,
    tmax=60.0 - 1.0 / sfreq,
)

split_sample = int(raw.first_samp + round(split_time * sfreq))
train_events = r_peak_samples[r_peak_samples < split_sample]
held_out_events = r_peak_samples[r_peak_samples >= split_sample]
if min(len(train_events), len(held_out_events)) < 4:
    raise RuntimeError(
        "The Sample crop must provide at least four complete R peaks in both "
        "the training and held-out intervals."
    )

train_contaminated = train_contaminated.copy().pick(
    "eeg", exclude="bads", verbose="ERROR"
)
held_out_contaminated = held_out_contaminated.copy().pick(
    "eeg", exclude="bads", verbose="ERROR"
)
held_out_reference = held_out_reference.copy().pick(
    "eeg", exclude="bads", verbose="ERROR"
)

bias = CycleAverageBias(
    event_samples=train_events,
    window=qrs_window,
    window_unit="seconds",
    sfreq=sfreq,
    event_origin="raw",
    first_samp=train_contaminated.first_samp,
)
n_components = 6
n_select = 1
model = DSS(
    bias=bias,
    n_components=n_components,
    n_select=n_select,
    component_action="subtract",
    normalize_input=False,
    verbose=False,
)
model.fit(train_contaminated)

# One fit is used for both held-out substrates. The reference transformation
# makes the planted artifact difference identifiable after the same operator.
cleaned_held_out = model.transform(held_out_contaminated)
cleaned_held_out_reference = model.transform(held_out_reference)

Evaluate the isolated planted artifact and clean-input preservation

artifact_before_data = held_out_contaminated.get_data() - held_out_reference.get_data()
artifact_after_data = (
    cleaned_held_out.get_data() - cleaned_held_out_reference.get_data()
)

artifact_before = mne.io.RawArray(
    artifact_before_data,
    held_out_contaminated.info.copy(),
    first_samp=held_out_contaminated.first_samp,
    verbose=False,
)
artifact_after = mne.io.RawArray(
    artifact_after_data,
    held_out_contaminated.info.copy(),
    first_samp=held_out_contaminated.first_samp,
    verbose=False,
)
artifact_before.set_annotations(held_out_contaminated.annotations.copy())
artifact_after.set_annotations(held_out_contaminated.annotations.copy())

held_out_epoch_events = np.column_stack(
    [
        held_out_events,
        np.zeros(len(held_out_events), dtype=int),
        np.ones(len(held_out_events), dtype=int),
    ]
)
artifact_before_epochs = mne.Epochs(
    artifact_before,
    held_out_epoch_events,
    event_id={"R peak": 1},
    tmin=qrs_window[0],
    tmax=qrs_window[1],
    baseline=None,
    preload=True,
    reject=None,
    verbose=False,
)
artifact_after_epochs = mne.Epochs(
    artifact_after,
    held_out_epoch_events,
    event_id={"R peak": 1},
    tmin=qrs_window[0],
    tmax=qrs_window[1],
    baseline=None,
    preload=True,
    reject=None,
    verbose=False,
)
artifact_before_evoked = artifact_before_epochs.average()
artifact_after_evoked = artifact_after_epochs.average()
artifact_before_rms = np.sqrt(np.mean(artifact_before_evoked.get_data() ** 2))
artifact_after_rms = np.sqrt(np.mean(artifact_after_evoked.get_data() ** 2))
artifact_residual_ratio = artifact_after_rms / artifact_before_rms
artifact_attenuation_db = 20.0 * np.log10(artifact_before_rms / artifact_after_rms)

reference_data = held_out_reference.get_data()
cleaned_reference_data = cleaned_held_out_reference.get_data()
reference_scale = np.sqrt(np.mean(reference_data**2))
clean_input_relative_rms_change = (
    rms_change(reference_data, cleaned_reference_data) / reference_scale
)
clean_input_waveform_correlation = float(
    np.corrcoef(reference_data.ravel(), cleaned_reference_data.ravel())[0, 1]
)
clean_input_retained_power = np.sum(cleaned_reference_data**2) / np.sum(
    reference_data**2
)

# This channel is predeclared from the planted topography, not selected from
# the held-out attenuation result.
cardiac_channel_index = int(np.argmax(np.abs(cardiac_topography)))
cardiac_channel = held_out_contaminated.ch_names[cardiac_channel_index]
representative_event_time = (
    int(held_out_events[0]) - int(held_out_contaminated.first_samp)
) / sfreq

print("Held-out cardiac DSS")
print(f"Training/held-out R-peak counts: {len(train_events)}/{len(held_out_events)}")
print(f"Planted-artifact residual ratio: {artifact_residual_ratio:.4f}")
print(f"Planted-artifact attenuation: {artifact_attenuation_db:.2f} dB")
print(f"Clean-input relative RMS change: {clean_input_relative_rms_change:.4f}")
print(f"Clean-input waveform correlation: {clean_input_waveform_correlation:.4f}")
print(f"Clean-input retained-power ratio: {clean_input_retained_power:.4f}")

Held-out cardiac DSS
Training/held-out R-peak counts: 29/29
Planted-artifact residual ratio: 0.0730
Planted-artifact attenuation: 22.73 dB
Clean-input relative RMS change: 0.0215
Clean-input waveform correlation: 0.9998
Clean-input retained-power ratio: 1.0003

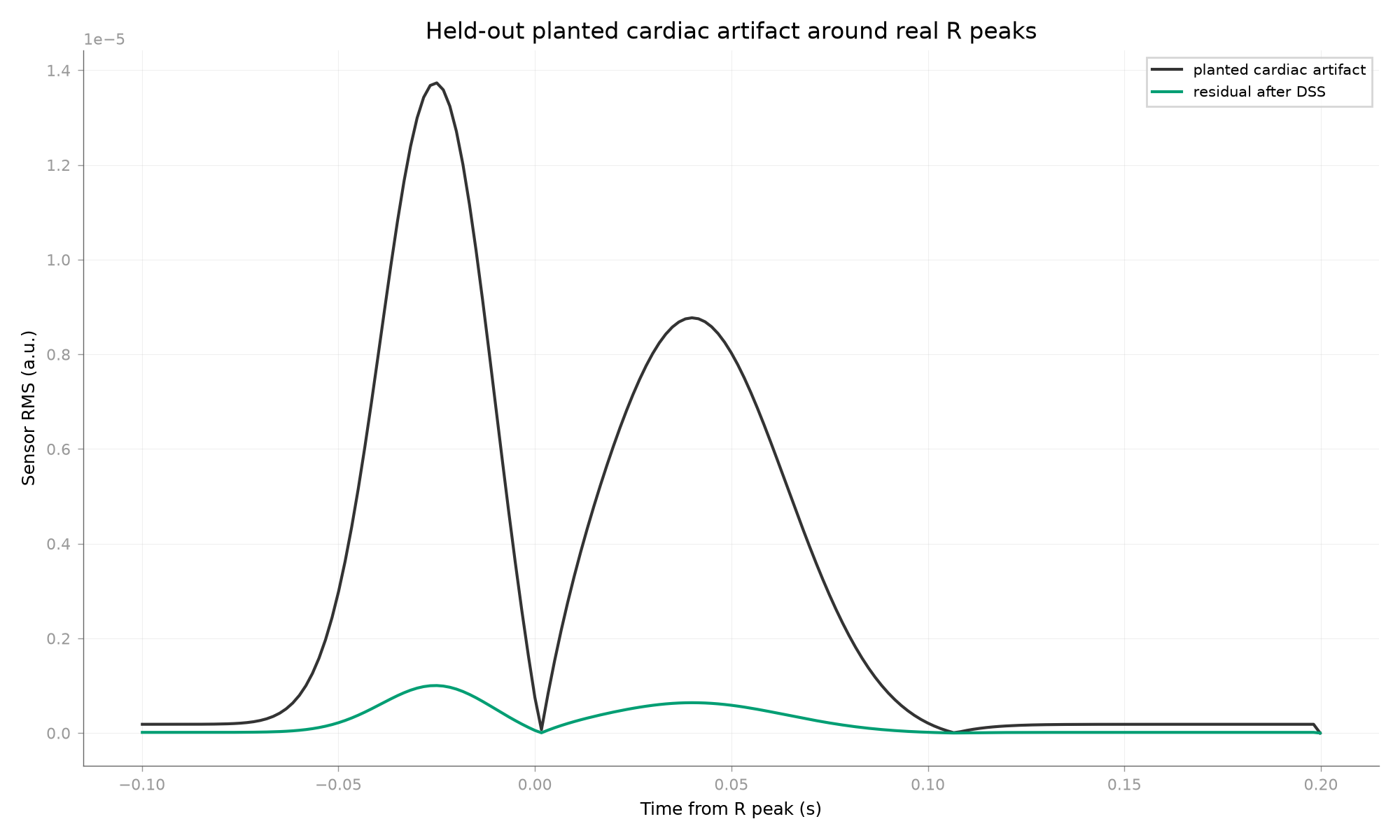

Inspect artifact-related evoked RMS behavior

plot_evoked_gfp_comparison(
    artifact_before_evoked,
    artifact_after_evoked,
    times=artifact_before_evoked.times,
    ci=None,
    labels=("planted cardiac artifact", "residual after DSS"),
    x_label="Time from R peak (s)",
    y_label="Sensor RMS (a.u.)",
    title="Held-out planted cardiac artifact around real R peaks",
    show=False,
)

<Figure size 2000x1200 with 1 Axes>

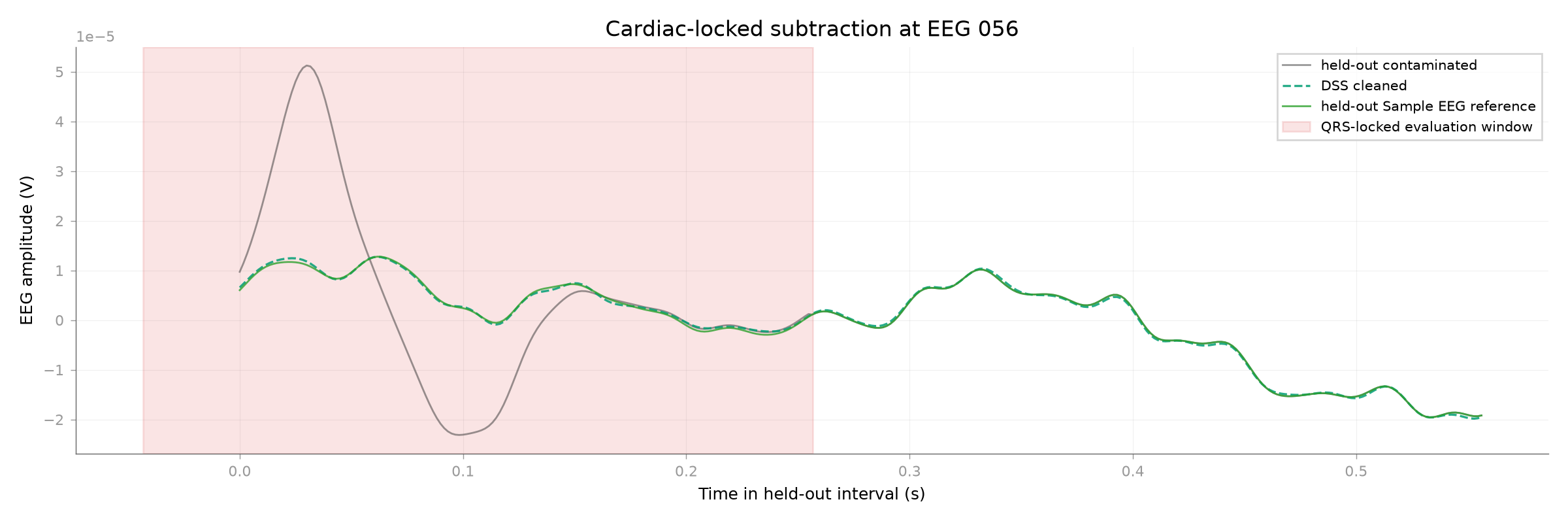

Inspect a representative-channel waveform

plot_signal_overlay(
    held_out_contaminated,
    cleaned_held_out,
    held_out_contaminated.times,
    pick=cardiac_channel,
    start=max(0.0, representative_event_time - 0.35),
    stop=min(held_out_contaminated.times[-1], representative_event_time + 0.50),
    scale_after=False,
    before_label="held-out contaminated",
    after_label="DSS cleaned",
    reference=reference_data[cardiac_channel_index],
    reference_label="held-out Sample EEG reference",
    highlight_spans=[
        {
            "onset": representative_event_time + qrs_window[0],
            "duration": qrs_window[1] - qrs_window[0],
            "label": "QRS-locked evaluation window",
        }
    ],
    x_label="Time in held-out interval (s)",
    y_label="EEG amplitude (V)",
    title=f"Cardiac-locked subtraction at {cardiac_channel}",
    show=False,
)

<Figure size 2400x800 with 1 Axes>

Interpretation

R-peak timing comes from the real MNE Sample recording, while the EEG substrate is real but the added rank-one cardiac artifact is controlled. The difference signals isolate that planted artifact before and after the same fitted operator. Cardiac locking is only the DSS bias criterion, so a real cardiac-locked component can include neural or other activity correlated with the cardiac cycle. The preservation values quantify how the learned operator changes the unmodified held-out Sample EEG substrate; they do not establish preservation of a noise-free neural ground truth.
