Forward-informed sensor-noise suppression with SOUND

Can SOUND use an anatomical forward model to identify and reduce deliberately added channel-specific noise while limiting distortion of the underlying recording? This example uses EEG from the MNE Sample dataset together with the public Sample forward solution, then plants independent broadband noise in three sensors.

SOUND uses forward-model consistency to estimate channel-specific noise; a signal that the forward model explains poorly is not thereby proven to be noise. Forward-model mismatch is a reason to evaluate preservation of the signal of interest separately. The unmodified filtered recording is the reference substrate for this controlled comparison, not noise-free neural ground truth. Quantitative and visual comparisons use a common average reference because reference="best" returns that representation.

The use case is motivated by [1][2].

References

[1]

Tuomas P. Mutanen, Johanna Metsomaa, Sara Liljander, and Risto J. Ilmoniemi. Automatic and robust noise suppression in eeg and meg: the sound algorithm. NeuroImage, 166:135–151, 2018. doi:10.1016/j.neuroimage.2017.10.021.

[2]

Tuomas P. Mutanen, Johanna Metsomaa, Matilda Makkonen, Giuseppe Varone, Laura Marzetti, and Risto J. Ilmoniemi. Source-based artifact-rejection techniques for tms–eeg. Journal of Neuroscience Methods, 382:109693, 2022. doi:10.1016/j.jneumeth.2022.109693.

Load EEG and an explicit public forward solution

import mne
import numpy as np
from matplotlib.patches import Patch

from mne_denoise.qa import rms_change
from mne_denoise.sound import SOUND
from mne_denoise.viz import (
    COLORS,
    FONTS,
    plot_signal_overlay,
    style_axes,
    themed_figure,
    themed_legend,
)

sample_path = mne.datasets.sample.data_path()
raw = mne.io.read_raw_fif(
    sample_path / "MEG" / "sample" / "sample_audvis_raw.fif",
    preload=False,
    verbose="ERROR",
)
forward = mne.read_forward_solution(
    sample_path / "MEG" / "sample" / "sample_audvis-meg-eeg-oct-6-fwd.fif",
    verbose="ERROR",
)

raw.pick("eeg", exclude="bads", verbose="ERROR").crop(
    0.0, 20.0, verbose="ERROR"
).load_data(verbose="ERROR")
raw.resample(200.0, verbose="ERROR")
raw.filter(1.0, 45.0, verbose="ERROR")

# Keep the filtered, good-channel recording in its original sensor coordinates
# for planting noise. The unmodified recording is the reference substrate, not
# a claim of noise-free neural ground truth.
reference = raw.copy()
reference_data = reference.get_data()
n_channels = reference_data.shape[0]

Plant known channel-specific noise

rng = np.random.default_rng(2018)
channel_scale = np.median(np.std(reference_data, axis=1))
corrupted_indices = np.array([5, n_channels // 2, n_channels - 5])
noise_multiplier = 3.0

corrupted_data = reference_data.copy()

for index in corrupted_indices:
    corrupted_data[index] += (
        noise_multiplier * channel_scale * rng.standard_normal(raw.n_times)
    )

corrupted = mne.io.RawArray(
    corrupted_data,
    reference.info.copy(),
    first_samp=reference.first_samp,
    verbose=False,
)
corrupted.set_annotations(reference.annotations.copy())
corrupted_channel_names = [reference.ch_names[index] for index in corrupted_indices]

Fit SOUND once, then apply the fitted operator to both recordings

sound = SOUND(
    forward=forward,
    reference="best",
    n_iter=5,
    random_state=0,
    verbose=False,
)
cleaned_corrupted = sound.fit_transform(corrupted)
cleaned_reference = sound.transform(reference)

# SOUND with reference="best" returns an average-referenced representation.
# Put both the clean substrate and corrupted input in that same coordinate
# system before computing recovery and preservation metrics.
reference_avg = reference.copy().set_eeg_reference(
    "average", projection=False, verbose="ERROR"
)
corrupted_avg = corrupted.copy().set_eeg_reference(
    "average", projection=False, verbose="ERROR"
)
reference_avg_data = reference_avg.get_data()
corrupted_avg_data = corrupted_avg.get_data()
cleaned_corrupted_data = cleaned_corrupted.get_data()
cleaned_reference_data = cleaned_reference.get_data()

artifact_before = rms_change(
    corrupted_avg_data,
    reference_avg_data,
)
artifact_after = rms_change(
    cleaned_corrupted_data,
    cleaned_reference_data,
)
artifact_residual_ratio = artifact_after / artifact_before

reference_scale = np.sqrt(np.mean(reference_avg_data**2))
preservation_change = rms_change(
    cleaned_reference_data,
    reference_avg_data,
)
preservation_relative_change = preservation_change / reference_scale

sigma_channel_indices = np.flatnonzero(np.arange(n_channels) != sound.best_channel_)
sigma_channel_names = [reference.ch_names[index] for index in sigma_channel_indices]
print(f"Planted corrupted channels: {corrupted_channel_names}")
print(f"Selected best-reference channel: {reference.ch_names[sound.best_channel_]}")
print(f"Artifact residual ratio:          {artifact_residual_ratio:.3f}")
print(f"Clean-substrate relative change:  {preservation_relative_change:.3f}")

    59 out of 366 channels remain after picking
Planted corrupted channels: ['EEG 006', 'EEG 030', 'EEG 056']
Selected best-reference channel: EEG 039
Artifact residual ratio:          0.004
Clean-substrate relative change:  0.472

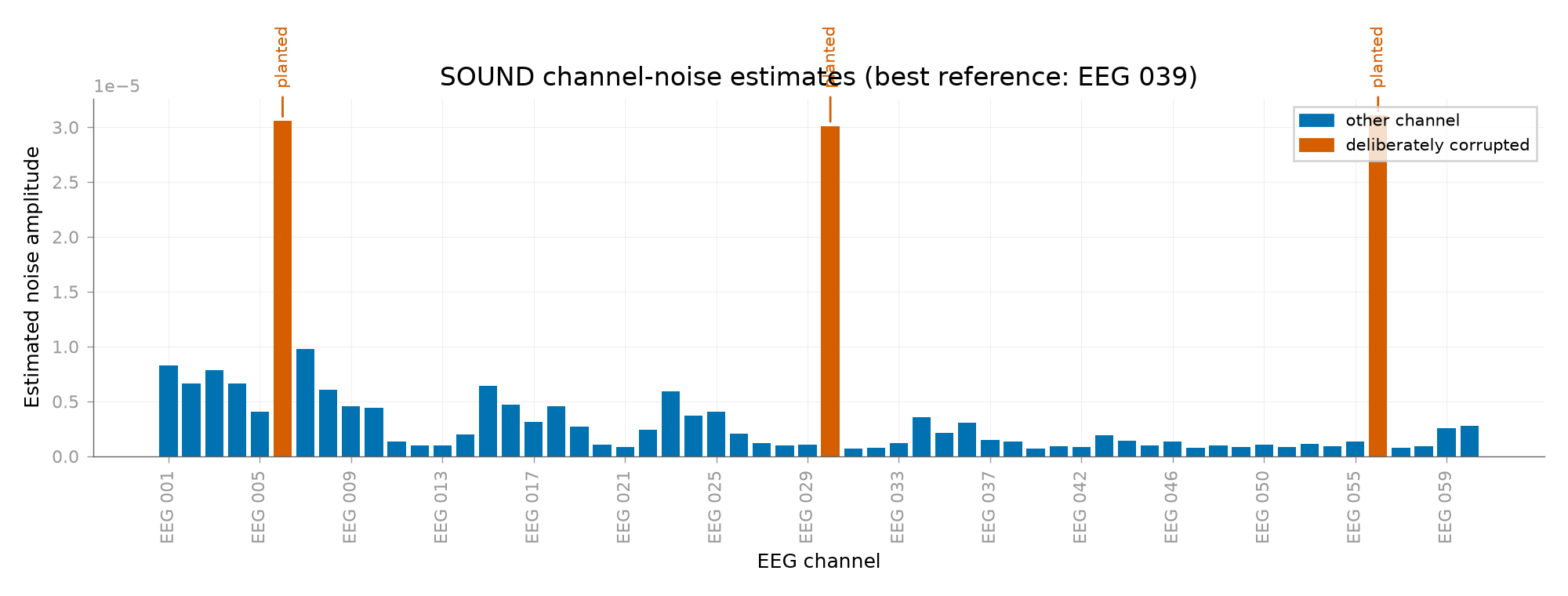

Plot the fitted channel-noise diagnostic

sigma_colors = [COLORS["primary"] for _ in range(len(sigma_channel_indices))]
for index in corrupted_indices:
    if index != sound.best_channel_:
        sigma_position = int(np.flatnonzero(sigma_channel_indices == index)[0])
        sigma_colors[sigma_position] = COLORS["accent"]

fig, ax = themed_figure(figsize=(10.0, 3.8))
sigma_positions = np.arange(len(sigma_channel_indices))
ax.bar(sigma_positions, sound.sigmas_, color=sigma_colors)
tick_step = max(1, len(sigma_channel_indices) // 12)
tick_positions = np.arange(0, len(sigma_channel_indices), tick_step)
ax.set_xticks(tick_positions)
ax.set_xticklabels(
    [sigma_channel_names[index] for index in tick_positions], rotation=90
)
ax.set_xlabel("EEG channel")
ax.set_ylabel("Estimated noise amplitude")
ax.set_title(
    "SOUND channel-noise estimates "
    f"(best reference: {reference.ch_names[sound.best_channel_]})"
)
for index in corrupted_indices:
    if index != sound.best_channel_:
        sigma_position = int(np.flatnonzero(sigma_channel_indices == index)[0])
        ax.annotate(
            "planted",
            xy=(sigma_position, sound.sigmas_[sigma_position]),
            xytext=(
                sigma_position,
                float(np.max(sound.sigmas_)) * 1.08,
            ),
            ha="center",
            va="bottom",
            rotation=90,
            fontsize=FONTS["annotation"],
            color=COLORS["accent"],
            arrowprops={"arrowstyle": "-", "color": COLORS["accent"]},
        )
themed_legend(
    ax,
    handles=[
        Patch(color=COLORS["primary"], label="other channel"),
        Patch(color=COLORS["accent"], label="deliberately corrupted"),
    ],
    loc="upper right",
)
style_axes(ax, grid=True)
fig.tight_layout()

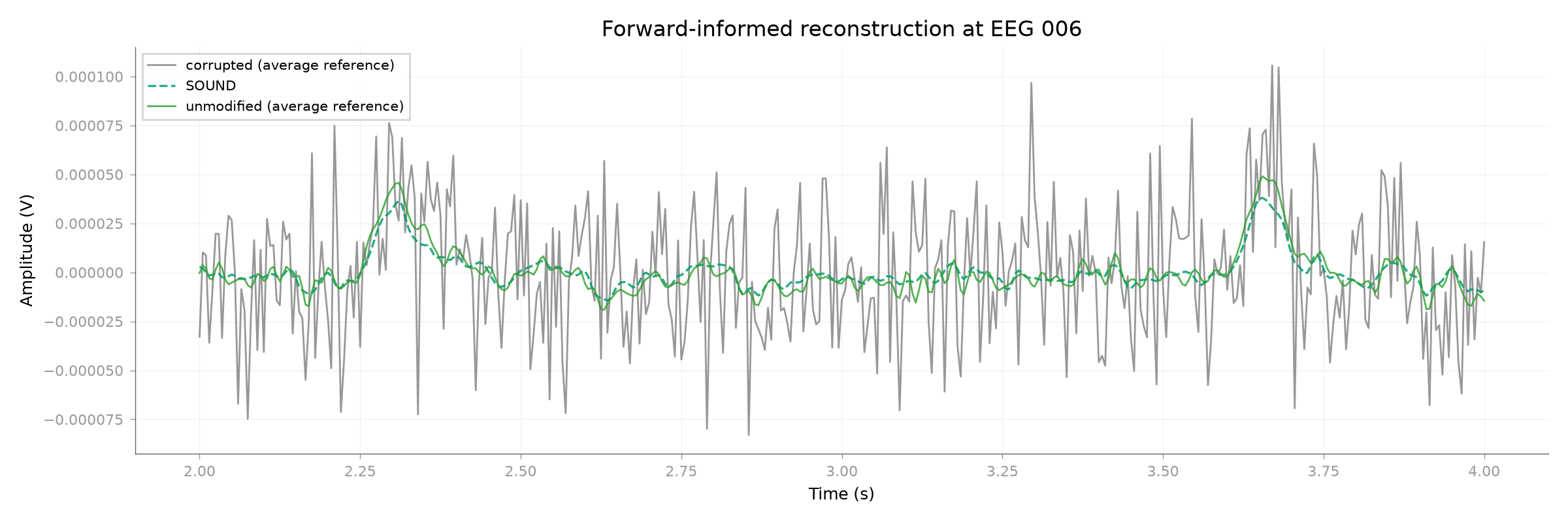

Inspect one reconstructed sensor

plot_signal_overlay(
    corrupted_avg,
    cleaned_corrupted,
    reference.times,
    pick=corrupted_channel_names[0],
    start=2.0,
    stop=4.0,
    scale_after=False,
    before_label="corrupted (average reference)",
    after_label="SOUND",
    reference=reference_avg_data[corrupted_indices[0]],
    reference_label="unmodified (average reference)",
    x_label="Time (s)",
    y_label="Amplitude (V)",
    title=f"Forward-informed reconstruction at {corrupted_channel_names[0]}",
    show=False,
)

<Figure size 2400x800 with 1 Axes>
