Juggler ASR when clean windows are scarce

How does reference selection behave when frequent short artifacts leave few fully clean calibration windows? This controlled recording stresses the window-based calibration assumption behind standard ASR and compares it with the public JugglerASR(strategy="dbscan") estimator, which selects reference samples point by point.

The known burst mask provides the artifact endpoint. Recovery toward the clean substrate outside those bursts provides the preservation endpoint. The reference fractions make the calibration decision visible. This substrate illustrates the regime that motivates Juggler ASR; it is not a benchmark of all ASR variants.

The use case is motivated by Juggler’s ASR [1] and the standard ASR calibration evaluation of [2].

References

[1]

Hyeonseok Kim, Chi-Yuan Chang, Christian Kothe, John Rehner Iversen, and Makoto Miyakoshi. Juggler’s asr: unpacking the principles of artifact subspace reconstruction for revision toward extreme mobi. Journal of Neuroscience Methods, 420:110465, 2025. doi:10.1016/j.jneumeth.2025.110465.

[2]

Chi-Yuan Chang, Sheng-Hsiou Hsu, Luca Pion-Tonachini, and Tzyy-Ping Jung. Evaluation of artifact subspace reconstruction for automatic artifact components removal in multi-channel eeg recordings. IEEE Transactions on Biomedical Engineering, 67(4):1114–1121, 2020. doi:10.1109/TBME.2019.2930186.

Construct a densely contaminated recording

import numpy as np

from mne_denoise.asr import ASR, JugglerASR
from mne_denoise.qa import rms_change
from mne_denoise.viz import plot_asr_calibration_fraction, plot_signal_overlay

rng = np.random.default_rng(21)
sfreq = 250.0
duration = 14.0
n_channels = 8
n_times = int(round(duration * sfreq))
times = np.arange(n_times) / sfreq

clean = np.empty((n_channels, n_times), dtype=float)
for channel in range(n_channels):
    phase = rng.uniform(0.0, 2.0 * np.pi)
    clean[channel] = (
        0.45 * np.sin(2.0 * np.pi * 10.0 * times + phase)
        + 0.18 * np.sin(2.0 * np.pi * 6.0 * times + 0.4 * phase)
        + 0.05 * rng.standard_normal(n_times)
    )

contaminated = clean.copy()
burst_mask = np.zeros(n_times, dtype=bool)
artifact_spatial = rng.standard_normal((n_channels, 2))
artifact_spatial /= np.linalg.norm(artifact_spatial, axis=0, keepdims=True)
for onset in np.arange(3.0, 11.5, 0.28):
    start = int(round(onset * sfreq))
    stop = min(n_times, start + int(round(0.10 * sfreq)))
    burst_mask[start:stop] = True
    burst_source = 7.0 * rng.standard_normal((2, stop - start))
    contaminated[:, start:stop] += artifact_spatial @ burst_source

Compare standard and Juggler reference selection

standard = ASR(
    sfreq=sfreq,
    cutoff=20.0,
    picks=None,
    verbose=False,
)
juggler = JugglerASR(
    sfreq=sfreq,
    cutoff=20.0,
    strategy="dbscan",
    picks=None,
    verbose=False,
)

cleaned_standard = np.asarray(standard.fit_transform(contaminated))
cleaned_juggler = np.asarray(juggler.fit_transform(contaminated))

# The public mask accessor returns each estimator's native representation:
# clean windows for standard ASR and reference samples for Juggler ASR.
standard_clean_window_fraction = standard.get_calibration_mask().mean()
juggler_reference_sample_fraction = juggler.get_calibration_mask().mean()
# These percentages summarize each method in its native calibration unit;
# they describe retained calibration support rather than directly comparable
# sample fractions.

artifact_before = rms_change(
    contaminated[:, burst_mask],
    clean[:, burst_mask],
)
standard_artifact_after = rms_change(
    cleaned_standard[:, burst_mask],
    clean[:, burst_mask],
)
juggler_artifact_after = rms_change(
    cleaned_juggler[:, burst_mask],
    clean[:, burst_mask],
)
standard_artifact_residual_ratio = standard_artifact_after / artifact_before
juggler_artifact_residual_ratio = juggler_artifact_after / artifact_before

quiet_mask = ~burst_mask
quiet_scale = np.sqrt(np.mean(clean[:, quiet_mask] ** 2))
standard_quiet_relative_error = (
    rms_change(
        cleaned_standard[:, quiet_mask],
        clean[:, quiet_mask],
    )
    / quiet_scale
)
juggler_quiet_relative_error = (
    rms_change(
        cleaned_juggler[:, quiet_mask],
        clean[:, quiet_mask],
    )
    / quiet_scale
)

print(
    "Standard ASR clean-window fraction: "
    f"{standard_clean_window_fraction:.1%}, "
    f"artifact residual ratio={standard_artifact_residual_ratio:.3f}, "
    f"quiet relative error={standard_quiet_relative_error:.3f}"
)
print(
    "Juggler ASR reference-sample fraction: "
    f"{juggler_reference_sample_fraction:.1%}, "
    f"artifact residual ratio={juggler_artifact_residual_ratio:.3f}, "
    f"quiet relative error={juggler_quiet_relative_error:.3f}"
)

Standard ASR clean-window fraction: 28.2%, artifact residual ratio=0.036, quiet relative error=0.308
Juggler ASR reference-sample fraction: 57.9%, artifact residual ratio=0.039, quiet relative error=0.293

Make the reference-fraction comparison visible

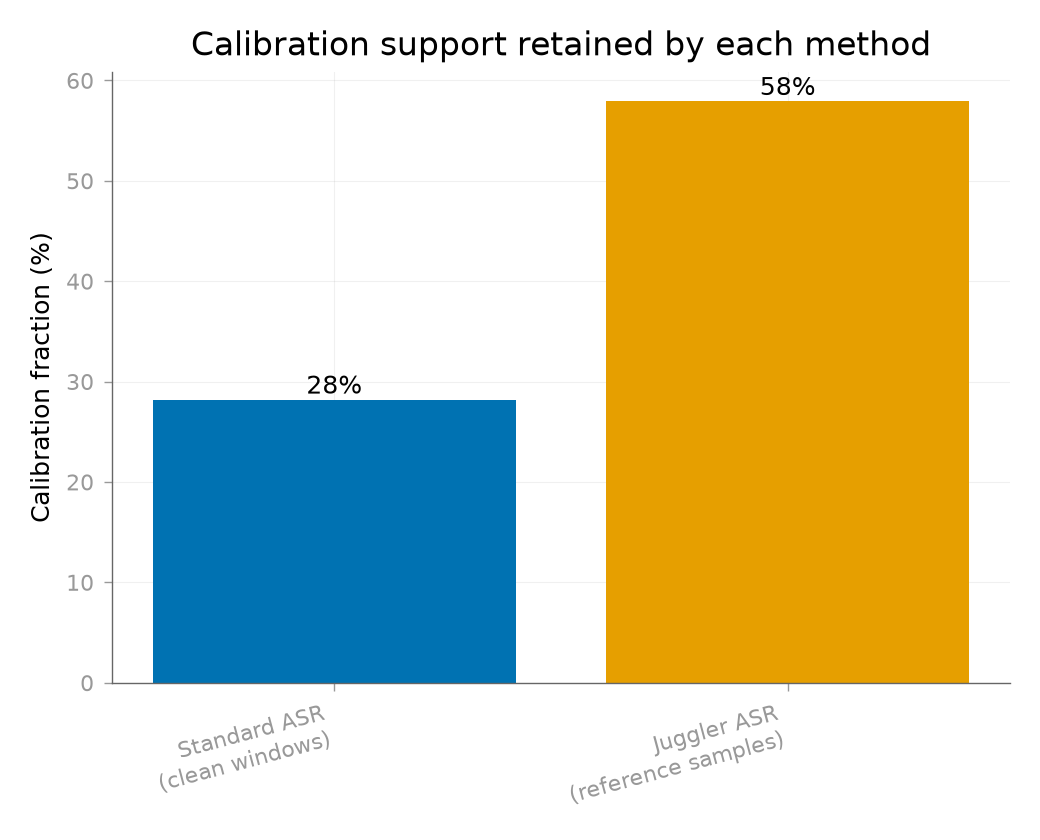

plot_asr_calibration_fraction(
    [standard, juggler],
    labels=[
        "Standard ASR\n(clean windows)",
        "Juggler ASR\n(reference samples)",
    ],
    title="Calibration support retained by each method",
    show=False,
)

(<Figure size 1040x840 with 1 Axes>, <Axes: title={'center': 'Calibration support retained by each method'}, ylabel='Calibration fraction (%)'>)

Inspect reconstruction of the dense bursts

channel = int(np.argmax(np.max(np.abs(artifact_spatial), axis=1)))

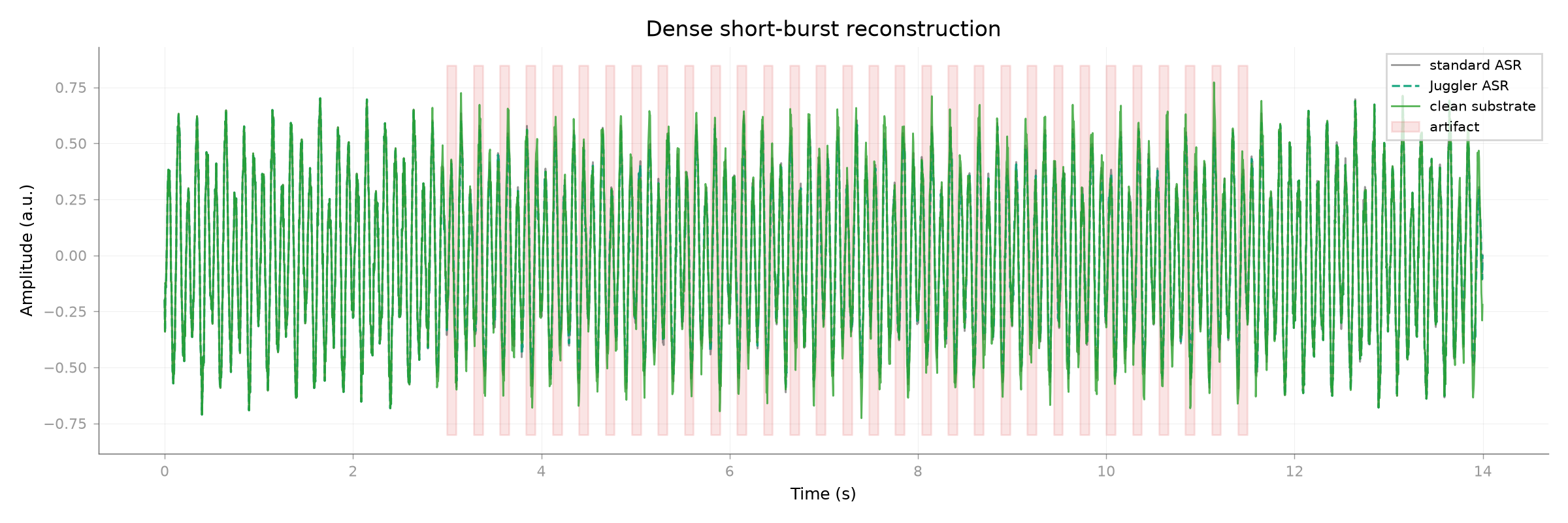

plot_signal_overlay(
    cleaned_standard,
    cleaned_juggler,
    times,
    pick=channel,
    scale_after=False,
    before_label="standard ASR",
    after_label="Juggler ASR",
    reference=clean[channel],
    reference_label="clean substrate",
    highlight_mask=burst_mask,
    highlight_label="artifact",
    x_label="Time (s)",
    y_label="Amplitude (a.u.)",
    title="Dense short-burst reconstruction",
    show=False,
)

<Figure size 2400x800 with 1 Axes>
