Suppressing a TMS-like muscle artifact with SSP-SIR

Can SSP-SIR suppress a short high-amplitude TMS-like muscle artifact while limiting distortion of a known EEG response, when the artifact spatial direction partly overlaps the neural topography?

This is controlled contamination of a real MNE Sample EEG evoked response, not validation on real TMS-EEG. The artifact direction is deliberately given moderate overlap with a clean response topography. SSP-SIR combines artifact subspace removal with forward-informed reconstruction, so attenuation and clean-input preservation must be evaluated separately [1][2]. The spatial-overlap interpretation is also discussed in [3][4].

References

[1]

Tuomas P. Mutanen, Matleena Kukkonen, Jaakko O. Nieminen, Matti Stenroos, Jukka Sarvas, and Risto J. Ilmoniemi. Recovering tms-evoked eeg responses masked by muscle artifacts. NeuroImage, 139:157–166, 2016. doi:10.1016/j.neuroimage.2016.05.028.

[2]

Tuomas P. Mutanen, Ida Ilmoniemi, Iiris Atti, Johanna Metsomaa, and Risto J. Ilmoniemi. A simulation study: comparing independent component analysis and signal-space projection–source-informed reconstruction for rejecting muscle artifacts evoked by transcranial magnetic stimulation. Frontiers in Human Neuroscience, 18:1324958, 2024. doi:10.3389/fnhum.2024.1324958.

[3]

Tuomas P. Mutanen, Johanna Metsomaa, Matilda Makkonen, Giuseppe Varone, Laura Marzetti, and Risto J. Ilmoniemi. Source-based artifact-rejection techniques for tms–eeg. Journal of Neuroscience Methods, 382:109693, 2022. doi:10.1016/j.jneumeth.2022.109693.

[4]

Julio C. Hernandez-Pavon, Dimitris Kugiumtzis, Christoph Zrenner, Vasilios K. Kimiskidis, and Johanna Metsomaa. Removing artifacts from tms-evoked eeg: a methods review and a unifying theoretical framework. Journal of Neuroscience Methods, 376:109591, 2022. doi:10.1016/j.jneumeth.2022.109591.

Derive a compact average-referenced EEG response from MNE Sample

import mne
import numpy as np
from mne.datasets import sample

from mne_denoise.qa import rms_change
from mne_denoise.sspsir import SSPSIR
from mne_denoise.viz import plot_signal_overlay

sample_path = sample.data_path(update_path=False)
raw = mne.io.read_raw_fif(
    sample_path / "MEG" / "sample" / "sample_audvis_raw.fif",
    preload=False,
    verbose="ERROR",
)
raw.crop(0.0, 60.0)
events = mne.find_events(raw, stim_channel="STI 014", verbose=False)
event_id = 1
auditory_events = events[events[:, 2] == event_id]

raw.pick("eeg", exclude="bads", verbose="ERROR").load_data(verbose="ERROR")
raw.filter(1.0, None, verbose="ERROR")
raw.set_eeg_reference("average", projection=False, verbose="ERROR")
epochs = mne.Epochs(
    raw,
    auditory_events,
    event_id={"Auditory/Left": event_id},
    tmin=-0.10,
    tmax=0.30,
    baseline=(None, 0.0),
    preload=True,
    reject=None,
    verbose=False,
)
reference = epochs.average()
reference.set_eeg_reference("average", projection=False, verbose="ERROR")
reference_data = reference.get_data()
sfreq = float(reference.info["sfreq"])
times = reference.times
n_channels = len(reference.ch_names)

forward = mne.read_forward_solution(
    sample_path / "MEG" / "sample" / "sample_audvis-meg-eeg-oct-6-fwd.fif",
    verbose="ERROR",
)

Plant one rank-one artifact with known moderate spatial overlap

response_window = (0.08, 0.13)
response_mask = (times >= response_window[0]) & (times <= response_window[1])
response_indices = np.flatnonzero(response_mask)
response_sensor_rms = np.sqrt(np.mean(reference_data[:, response_mask] ** 2, axis=0))
response_peak_index = int(response_indices[np.argmax(response_sensor_rms)])
neural_topography = reference_data[:, response_peak_index].copy()
neural_topography -= neural_topography.mean()
neural_topography /= np.linalg.norm(neural_topography)

rng = np.random.default_rng(2024)
orthogonal = rng.standard_normal(n_channels)
orthogonal -= orthogonal.mean()
orthogonal -= neural_topography * np.dot(neural_topography, orthogonal)
orthogonal -= orthogonal.mean()
orthogonal /= np.linalg.norm(orthogonal)

configured_overlap = 0.5
artifact_topography = (
    configured_overlap * neural_topography
    + np.sqrt(1.0 - configured_overlap**2) * orthogonal
)
artifact_topography -= artifact_topography.mean()
artifact_topography /= np.linalg.norm(artifact_topography)
actual_overlap = float(
    np.dot(artifact_topography, neural_topography)
    / (np.linalg.norm(artifact_topography) * np.linalg.norm(neural_topography))
)

high_pass = 100.0
nyquist = sfreq / 2.0
reference_lowpass = float(reference.info["lowpass"])
upper_frequency = min(0.9 * nyquist, reference_lowpass)
if upper_frequency <= high_pass:
    raise RuntimeError(
        "The Sample EEG metadata do not provide a usable frequency interval "
        "above the SSP-SIR high-pass cutoff."
    )
artifact_frequency = 0.5 * (high_pass + upper_frequency)
artifact_mask = (times >= 0.0) & (times <= 0.05)
artifact_envelope = np.exp(-0.5 * ((times - 0.025) / 0.009) ** 2)
artifact_waveform = np.where(
    artifact_mask,
    artifact_envelope * np.sin(2.0 * np.pi * artifact_frequency * (times - 0.025)),
    0.0,
)
unscaled_artifact = artifact_topography[:, np.newaxis] * artifact_waveform
reference_scale = np.sqrt(np.mean(reference_data**2))
unscaled_artifact_scale = np.sqrt(np.mean(unscaled_artifact[:, artifact_mask] ** 2))
requested_amplitude_ratio = 80.0
artifact = unscaled_artifact * (
    requested_amplitude_ratio * reference_scale / unscaled_artifact_scale
)
contaminated_data = reference_data + artifact
contaminated = mne.EvokedArray(
    contaminated_data,
    reference.info.copy(),
    tmin=reference.times[0],
    nave=reference.nave,
    comment="auditory reference with controlled TMS-like artifact",
    verbose=False,
)

Fit once on contaminated data and transform both substrates

model = SSPSIR(
    n_components=1,
    forward=forward,
    art_window=(0.0, 0.05),
    high_pass=high_pass,
    verbose=False,
)
model.fit(contaminated)
cleaned_contaminated = model.transform(contaminated)
cleaned_reference = model.transform(reference)

59 out of 366 channels remain after picking

Evaluate artifact attenuation and multiple preservation controls

cleaned_contaminated_data = cleaned_contaminated.get_data()
cleaned_reference_data = cleaned_reference.get_data()
artifact_before = contaminated_data - reference_data
artifact_after = cleaned_contaminated_data - cleaned_reference_data
artifact_before_rms = np.sqrt(np.mean(artifact_before[:, artifact_mask] ** 2))
artifact_after_rms = np.sqrt(np.mean(artifact_after[:, artifact_mask] ** 2))
artifact_residual_ratio = artifact_after_rms / artifact_before_rms
artifact_attenuation_db = 20.0 * np.log10(1.0 / artifact_residual_ratio)

artifact_window_reference_scale = np.sqrt(
    np.mean(reference_data[:, artifact_mask] ** 2)
)
artifact_window_clean_change = (
    rms_change(
        reference_data[:, artifact_mask],
        cleaned_reference_data[:, artifact_mask],
    )
    / artifact_window_reference_scale
)
late_mask = (times >= response_window[0]) & (times <= response_window[1])
late_reference_scale = np.sqrt(np.mean(reference_data[:, late_mask] ** 2))
late_clean_change = (
    rms_change(
        reference_data[:, late_mask],
        cleaned_reference_data[:, late_mask],
    )
    / late_reference_scale
)
late_waveform_correlation = float(
    np.corrcoef(
        reference_data[:, late_mask].ravel(),
        cleaned_reference_data[:, late_mask].ravel(),
    )[0, 1]
)
late_sensor_rms_gain = (
    np.sqrt(np.mean(cleaned_reference_data[:, late_mask] ** 2)) / late_reference_scale
)

reference_peak = reference_data[:, response_peak_index]
cleaned_reference_peak = cleaned_reference_data[:, response_peak_index]
peak_topography_correlation = float(
    np.corrcoef(reference_peak.ravel(), cleaned_reference_peak.ravel())[0, 1]
)
peak_topography_gain = np.dot(cleaned_reference_peak, reference_peak) / np.dot(
    reference_peak,
    reference_peak,
)

representative_channel_index = int(np.argmax(np.abs(reference_peak)))
representative_channel = reference.ch_names[representative_channel_index]
print("Controlled TMS-like artifact with SSP-SIR")
print(
    "Configured / actual spatial overlap: "
    f"{configured_overlap:.3f} / {actual_overlap:.4f}"
)
print(
    "Artifact residual ratio / attenuation: "
    f"{artifact_residual_ratio:.4f} / {artifact_attenuation_db:.2f} dB"
)
print(
    "Artifact-window clean-input relative RMS change using local scale: "
    f"{artifact_window_clean_change:.4f}"
)
print(
    "Late-response relative RMS change / waveform correlation: "
    f"{late_clean_change:.4f} / {late_waveform_correlation:.4f}"
)
print(
    "Response-peak topography correlation / gain: "
    f"{peak_topography_correlation:.4f} / {peak_topography_gain:.4f}"
)

Controlled TMS-like artifact with SSP-SIR
Configured / actual spatial overlap: 0.500 / 0.5000
Artifact residual ratio / attenuation: 0.0114 / 38.87 dB
Artifact-window clean-input relative RMS change using local scale: 0.1516
Late-response relative RMS change / waveform correlation: 0.0122 / 0.9999
Response-peak topography correlation / gain: 1.0000 / 1.0000

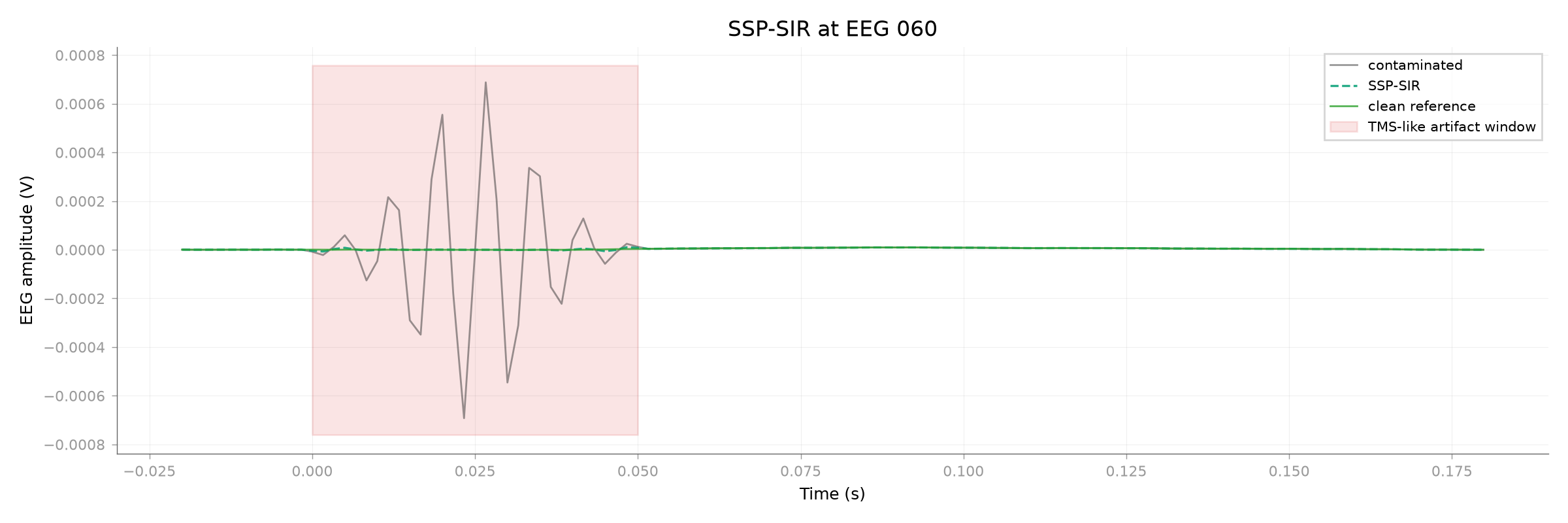

Inspect temporal signal recovery

plot_signal_overlay(
    contaminated,
    cleaned_contaminated,
    times,
    pick=representative_channel,
    start=-0.02,
    stop=0.18,
    scale_after=False,
    before_label="contaminated",
    after_label="SSP-SIR",
    reference=reference_data[representative_channel_index],
    reference_label="clean reference",
    highlight_mask=artifact_mask,
    highlight_label="TMS-like artifact window",
    x_label="Time (s)",
    y_label="EEG amplitude (V)",
    title=f"SSP-SIR at {representative_channel}",
    show=False,
)

<Figure size 2400x800 with 1 Axes>

Inspect the spatial projector

mne.viz.plot_projs_topomap(
    model.projs_,
    reference.info,
    show=False,
)

<MNEFigure size 150x220 with 1 Axes>

Interpretation

The real Sample evoked response is used only as a clean methodological EEG substrate; this is not a validation on real TMS-EEG. The planted artifact is rank one, which is why n_components=1 is sufficient for this construction. Its direction has deliberate moderate overlap with a real response topography, so SSP-SIR can attenuate the artifact while changing the clean response. Source-informed reconstruction reduces the signal loss of pure projection but does not guarantee distortion-free recovery. Greater artifact/neural topographic similarity makes preservation more difficult, consistent with the simulation evidence cited above.
