ZapLine: Epoched Data and Real Data Examples.

This example shows how ZapLine can be applied when the data are naturally epoched, then extends the same workflow to larger real MEG arrays from the NoiseTools examples.

Authors: Sina Esmaeili (sina.esmaeili@umontreal.ca)

Hamza Abdelhedi (hamza.abdelhedi@umontreal.ca)

Imports

from pathlib import Path
from urllib.request import urlretrieve

import numpy as np
from scipy import signal
from scipy.io import loadmat

from mne_denoise.viz import (
    plot_component_cleaning_summary,
    plot_psd_comparison,
)
from mne_denoise.zapline import ZapLine

NOISETOOLS_BASE_URL = "http://audition.ens.fr/adc/NoiseTools/DATA"


def _find_repo_root():
    """Return the repository root for this example."""
    starts = []
    if "__file__" in globals():
        starts.append(Path(__file__).resolve())
    starts.append(Path.cwd().resolve())

    for start in starts:
        current = start if start.is_dir() else start.parent
        for candidate in (current, *current.parents):
            mne_ok = (candidate / "mne_denoise").exists()
            ex_ok = (candidate / "examples").exists()
            if mne_ok and ex_ok:
                return candidate

    raise FileNotFoundError("Could not locate the repository root.")


def _load_or_fetch_data_file(name):
    """Return one ZapLine example data file, downloading it if needed."""
    path = _find_repo_root() / "examples" / "zapline" / "data" / name
    if path.exists():
        return path

    path.parent.mkdir(parents=True, exist_ok=True)
    url = f"{NOISETOOLS_BASE_URL}/{name}"
    print(f"Downloading {name} to {path}...")
    urlretrieve(url, str(path))
    return path

Part 1: Synthetic Epoched Data

Create epoched data with line noise to demonstrate ZapLine on trials.

print("Part 1: Synthetic Epoched Data")

# Parameters
sfreq = 500  # Sampling rate
n_epochs = 30
n_channels = 16
n_times = 250  # 0.5 seconds per epoch

rng = np.random.RandomState(42)

# Create spatial patterns
neural_pattern = rng.randn(n_channels)
neural_pattern /= np.linalg.norm(neural_pattern)

line_pattern = rng.randn(n_channels)
line_pattern /= np.linalg.norm(line_pattern)

# Generate epoched data
t = np.arange(n_times) / sfreq
epochs_data = np.zeros((n_epochs, n_channels, n_times))

for i in range(n_epochs):
    # Neural signal (evoked-like)
    neural_source = np.sin(2 * np.pi * 10 * t) * np.exp(-t / 0.2)

    # Line noise (constant across epochs, different phase)
    phase = rng.uniform(0, 2 * np.pi)
    line_source = 1.5 * np.sin(2 * np.pi * 50 * t + phase)

    for ch in range(n_channels):
        epochs_data[i, ch] = (
            neural_pattern[ch] * neural_source
            + line_pattern[ch] * line_source
            + rng.randn(n_times) * 0.3
        )

print(f"Epochs data shape: {epochs_data.shape}")  # (n_epochs, n_channels, n_times)

Part 1: Synthetic Epoched Data
Epochs data shape: (30, 16, 250)

Apply ZapLine to Epoched Data

ZapLine expects 2D data, so we concatenate epochs for fitting. The important point is that the fit is done on a long 2D signal, then the cleaned data are reshaped back to the original epoch structure.

print("\nApplying ZapLine to epoched data...")

# Concatenate epochs for ZapLine
data_concat = epochs_data.reshape(n_channels, -1)  # (channels, epochs*times)
print(f"Concatenated shape: {data_concat.shape}")

# Apply ZapLine
est = ZapLine(line_freq=50, sfreq=sfreq, n_remove=1)
est.fit(data_concat)
cleaned = est.transform(data_concat)

# Reshape back to epochs
cleaned_epochs = cleaned.reshape(n_epochs, n_channels, n_times)
print(f"Cleaned epochs shape: {cleaned_epochs.shape}")

Applying ZapLine to epoched data...
Concatenated shape: (16, 7500)
Cleaned epochs shape: (30, 16, 250)

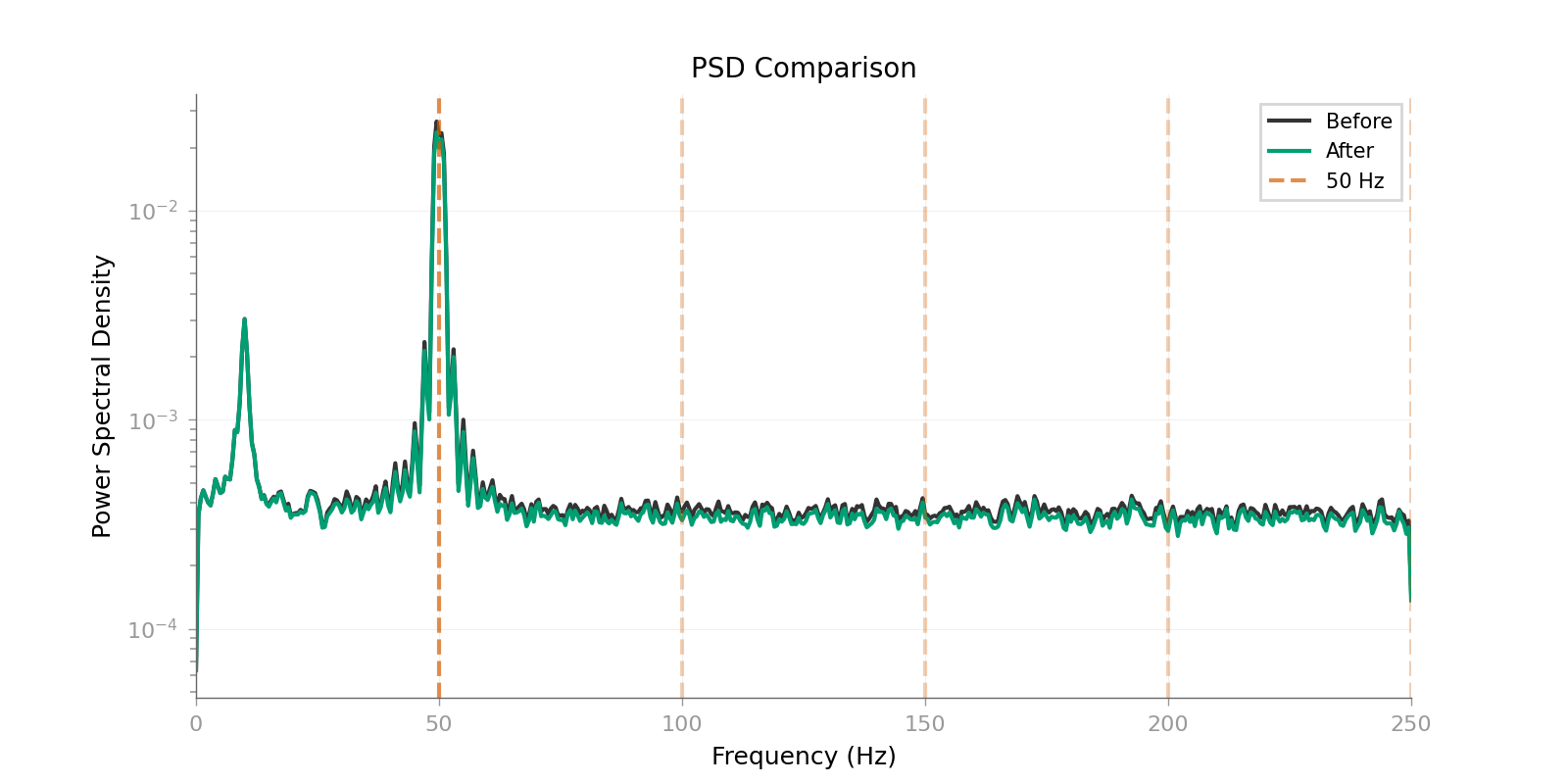

Compare Before/After

The PSD view should show the narrowband suppression clearly before we inspect component summaries.

# Use the reusable viz function for PSD comparison
plot_psd_comparison(data_concat, cleaned, sfreq=sfreq, line_freq=50, show=True)

<Figure size 1600x800 with 1 Axes>

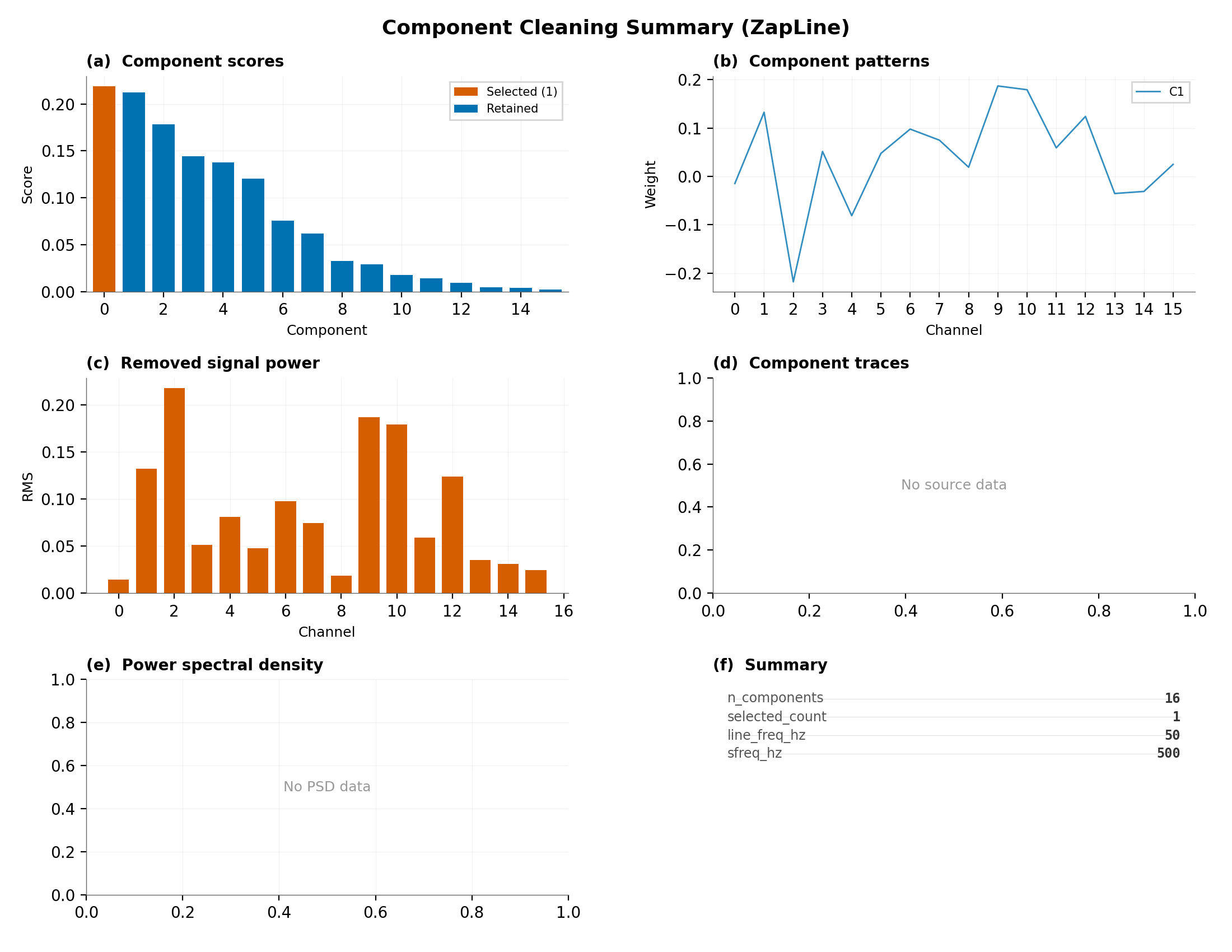

Component Cleaning Summary

# Show comprehensive cleaning summary
plot_component_cleaning_summary(
    scores=getattr(est, "scores_", getattr(est, "eigenvalues_", None)),
    selected_count=getattr(est, "n_removed_", 0),
    patterns=getattr(est, "patterns_", None),
    removed=data_concat - cleaned,
    sources=getattr(est, "sources_", None),
    sfreq=sfreq,
    line_freq=50,
    title="Component Cleaning Summary (ZapLine)",
    show=True,
)

/home/runner/work/mne-denoise/mne-denoise/mne_denoise/viz/theme.py:379: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
  fig.tight_layout()

<Figure size 2200x1700 with 6 Axes>

Part 2: Real MEG Epoched Data (NoiseTools data3.mat)

MEG epoched data from NoiseTools. Shape: (900 times, 151 channels, 30 epochs), sr=300 Hz

print("\nPart 2: Real MEG Epoched Data")

# Load data3.mat (MEG epoched)
data3_path = _load_or_fetch_data_file("data3.mat")
mat = loadmat(str(data3_path))
meg_epochs = mat["data"]  # (times, channels, epochs) = (900, 151, 30)
sfreq_meg = float(mat["sr"].flatten()[0])

# Use first 10 epochs as in MATLAB example
meg_epochs = meg_epochs[:, :, :10]  # (900, 151, 10)

# Transpose to (channels, times*epochs) for ZapLine
n_times_meg, n_ch_meg, n_ep_meg = meg_epochs.shape
meg_concat = meg_epochs.transpose(1, 0, 2).reshape(n_ch_meg, -1)  # (151, 9000)

# Demean
meg_concat = meg_concat - np.mean(meg_concat, axis=1, keepdims=True)

# Scale to reasonable units (MEG data is in Tesla, very small values)
scale_factor = 1e12  # Convert to pT
meg_concat = meg_concat * scale_factor

print(f"Loaded data3.mat: {n_ep_meg} epochs, {n_ch_meg} channels, {n_times_meg} times")
print(f"Concatenated shape: {meg_concat.shape}")
print(f"Sampling rate: {sfreq_meg} Hz")

# Apply ZapLine (50 Hz)
est_meg = ZapLine(
    line_freq=50,
    sfreq=sfreq_meg,
    n_remove=2,  # As in MATLAB example
)
est_meg.fit(meg_concat)
cleaned_meg = est_meg.transform(meg_concat)

print(f"Components removed: {est_meg.n_removed_}")

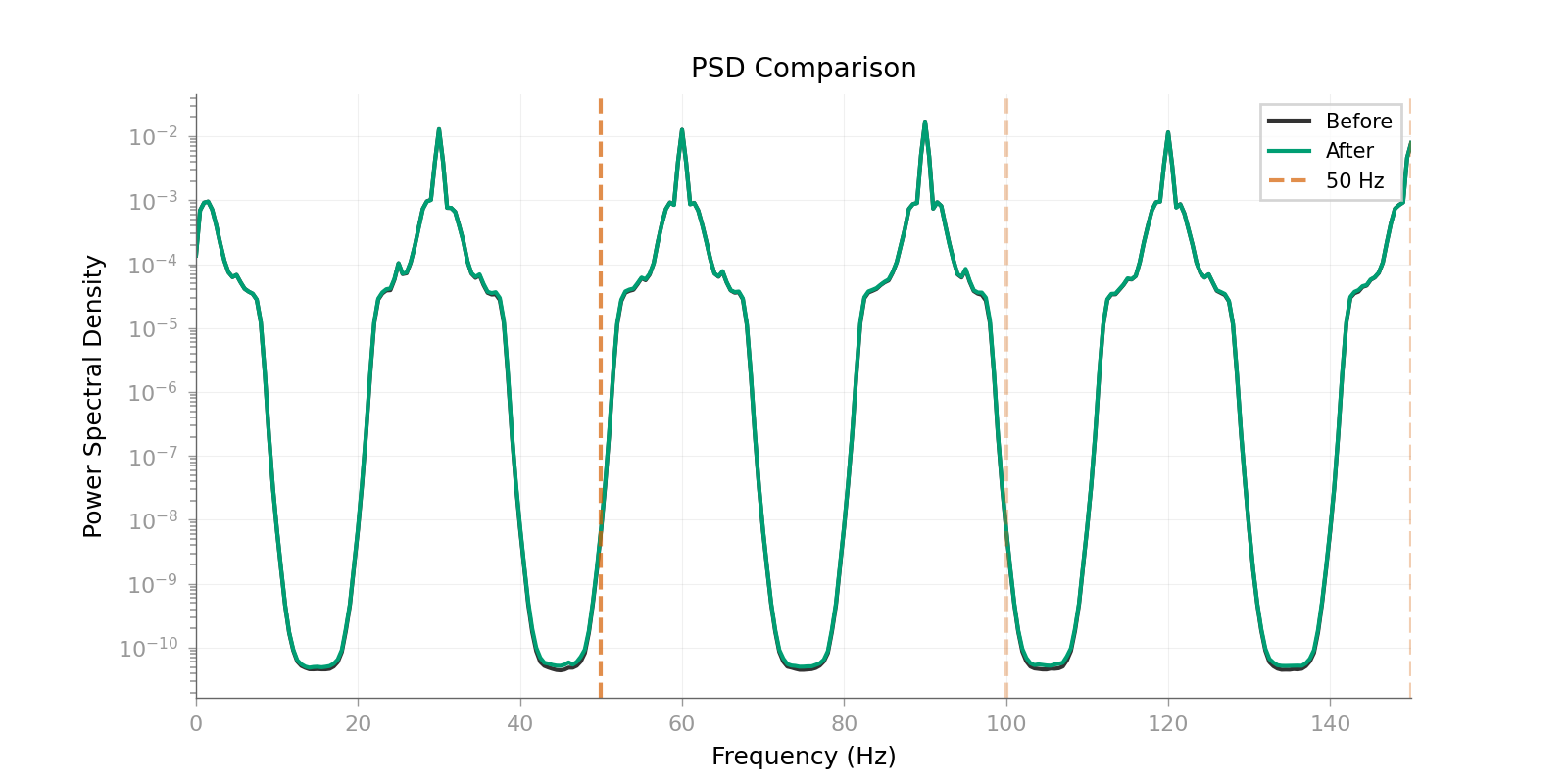

# Use the reusable viz functions
# The real-data example follows the same pattern as the synthetic one: inspect
# the spectral change first, then inspect the removed components.
plot_psd_comparison(
    meg_concat,
    cleaned_meg,
    sfreq=sfreq_meg,
    line_freq=50,
    fmax=150,
    show=True,
)

# Measure reduction
nperseg = min(meg_concat.shape[1], int(sfreq_meg * 2))
freqs, psd_orig = signal.welch(meg_concat, sfreq_meg, nperseg=nperseg)
_, psd_clean = signal.welch(cleaned_meg, sfreq_meg, nperseg=nperseg)
idx_50 = np.argmin(np.abs(freqs - 50))
ratio = np.mean(psd_orig[:, idx_50]) / np.mean(psd_clean[:, idx_50])
reduction_db = 10 * np.log10(ratio)
print(f"50 Hz power reduction: {reduction_db:.1f} dB")

Part 2: Real MEG Epoched Data
Downloading data3.mat to /home/runner/work/mne-denoise/mne-denoise/examples/zapline/data/data3.mat...
Loaded data3.mat: 10 epochs, 151 channels, 900 times
Concatenated shape: (151, 9000)
Sampling rate: 300.0 Hz
Components removed: 2
50 Hz power reduction: -0.3 dB

Part 3: High-Channel MEG Data (NoiseTools example_data.mat)

MEG data with many channels (275), demonstrating nkeep parameter. Shape: (3000 times, 275 channels, 30 epochs), sr=600 Hz

print("\nPart 3: High-Channel MEG Data")

example_data_path = _load_or_fetch_data_file("example_data.mat")
mat = loadmat(str(example_data_path))
meg_high = mat["meg"]  # (times, channels, epochs) = (3000, 275, 30)
sfreq_high = float(mat["sr"].flatten()[0])

# Use first epoch as in MATLAB example
meg_high = meg_high[:, :, 0].T  # (275, 3000)

# Demean
meg_high = meg_high - np.mean(meg_high, axis=1, keepdims=True)

# Scale to reasonable units (MEG data is in Tesla, very small values)
scale_factor = 1e12  # Convert to pT
meg_high = meg_high * scale_factor

print(f"Loaded example_data.mat: {meg_high.shape}")
print(f"Sampling rate: {sfreq_high} Hz")

# Apply ZapLine with nkeep
est_high = ZapLine(
    line_freq=50,
    sfreq=sfreq_high,
    n_remove=6,  # As in MATLAB example
    nkeep=50,  # Reduce dimensionality
)
est_high.fit(meg_high)
cleaned_high = est_high.transform(meg_high)

print(f"Components removed: {est_high.n_removed_}")

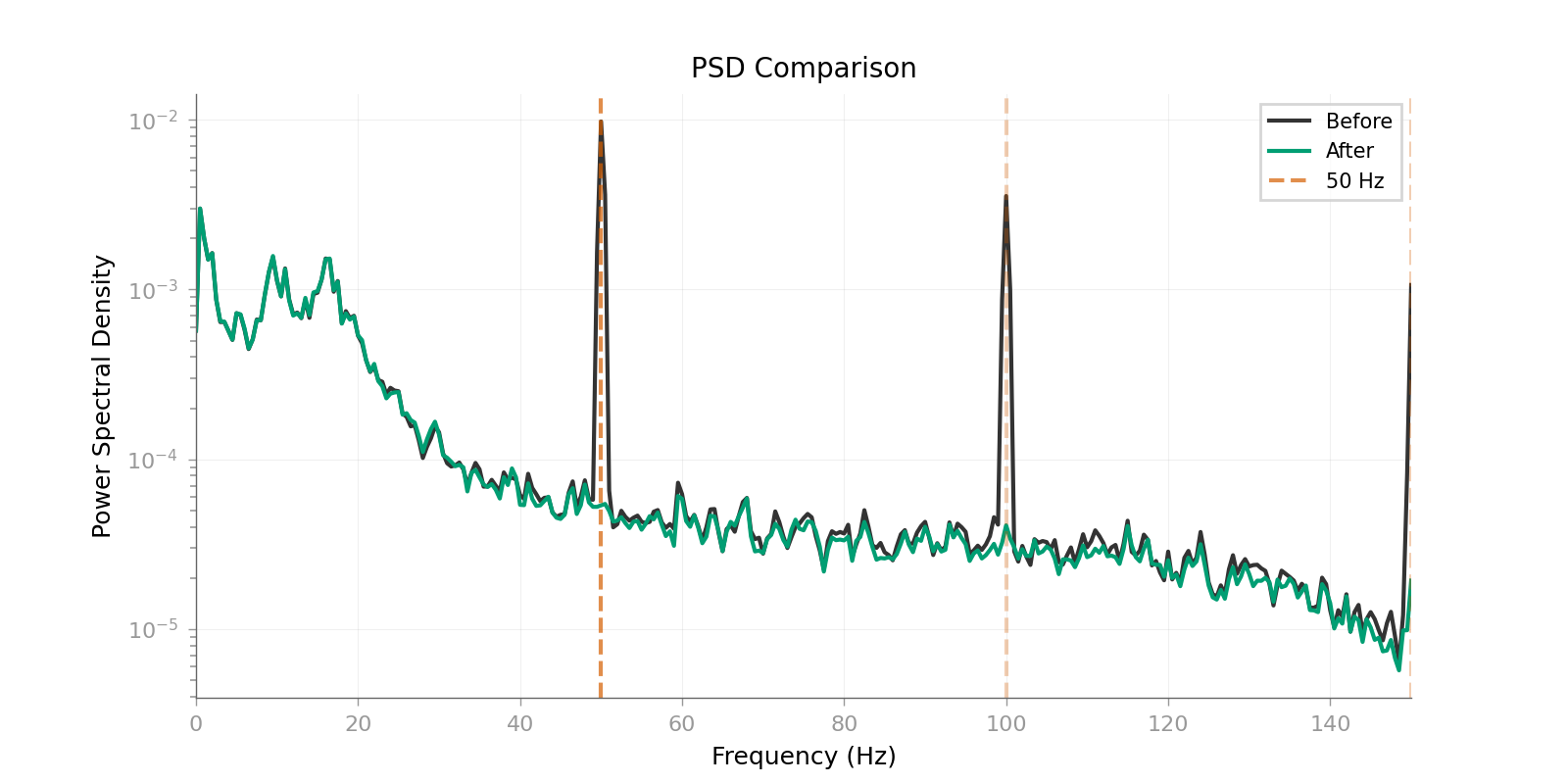

# Use the reusable viz functions
plot_psd_comparison(
    meg_high,
    cleaned_high,
    sfreq=sfreq_high,
    line_freq=50,
    fmax=150,
    show=True,
)

Part 3: High-Channel MEG Data
Downloading example_data.mat to /home/runner/work/mne-denoise/mne-denoise/examples/zapline/data/example_data.mat...
Loaded example_data.mat: (275, 3000)
Sampling rate: 600.0 Hz
Components removed: 6

<Figure size 1600x800 with 1 Axes>

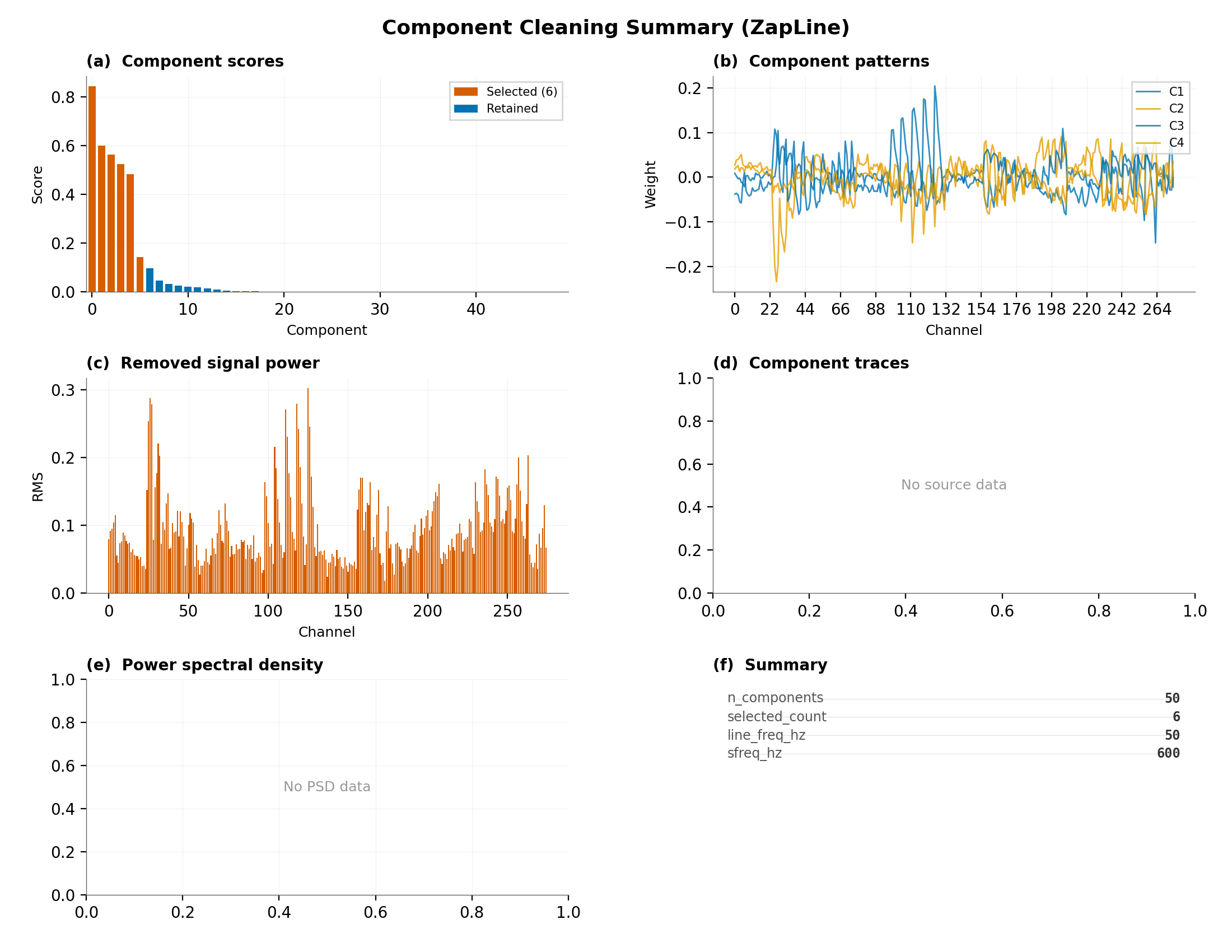

Component Cleaning Summary

plot_component_cleaning_summary(
    scores=getattr(est_high, "scores_", getattr(est_high, "eigenvalues_", None)),
    selected_count=getattr(est_high, "n_removed_", 0),
    patterns=getattr(est_high, "patterns_", None),
    removed=meg_high - cleaned_high,
    sources=getattr(est_high, "sources_", None),
    sfreq=sfreq_high,
    line_freq=50,
    title="Component Cleaning Summary (ZapLine)",
    show=True,
)

/home/runner/work/mne-denoise/mne-denoise/mne_denoise/viz/theme.py:379: UserWarning: This figure includes Axes that are not compatible with tight_layout, so results might be incorrect.
  fig.tight_layout()

<Figure size 2200x1700 with 6 Axes>

Measure Reduction

nperseg = min(meg_high.shape[1], int(sfreq_high * 2))
freqs, psd_orig = signal.welch(meg_high, sfreq_high, nperseg=nperseg)
_, psd_clean = signal.welch(cleaned_high, sfreq_high, nperseg=nperseg)
idx_50 = np.argmin(np.abs(freqs - 50))
ratio = np.mean(psd_orig[:, idx_50]) / np.mean(psd_clean[:, idx_50])
reduction_db = 10 * np.log10(ratio)
print(f"50 Hz power reduction: {reduction_db:.1f} dB")

50 Hz power reduction: 22.6 dB

Conclusion

ZapLine can be applied to epoched data by concatenating epochs, cleaned on high-channel recordings with nkeep to control dimensionality, and used as a standard transformer in a fit/transform workflow.

On real MEG data, removing 2 to 6 components is often sufficient, a value like nkeep=50 works well for very high-channel recordings, and the 50 Hz attenuation is typically large enough to be obvious in the PSD.
