Periodic Signals (SSVEP and Quasi-Periodic).

This example demonstrates periodic signal extraction with DSS. It combines PeakFilterBias, CombFilterBias, and QuasiPeriodicDenoiser with DSS and IterativeDSS to cover single-frequency extraction, SSVEP harmonics, and quasi-periodic structure such as ECG-like activity.

Authors: Sina Esmaeili (sina.esmaeili@umontreal.ca)

Hamza Abdelhedi (hamza.abdelhedi@umontreal.ca)

import matplotlib.pyplot as plt
import mne
import numpy as np
from scipy.signal import detrend

from mne_denoise.dss import DSS, IterativeDSS
from mne_denoise.dss.denoisers import (
    CombFilterBias,
    PeakFilterBias,
    QuasiPeriodicDenoiser,
)
from mne_denoise.dss.variants import ssvep_dss
from mne_denoise.viz import (
    plot_channel_time_course_comparison,
    plot_component_psd_comparison,
    plot_component_summary,
    plot_psd_comparison,
)

Part 0: Single Frequency (PeakFilterBias)

PeakFilterBias applies a narrow bandpass filter at a single frequency. Simpler than CombFilterBias, useful for extracting single oscillations.

print("\n--- Part 0: Single Frequency Extraction (PeakFilterBias) ---")

rng = np.random.default_rng(42)
sfreq = 250
n_seconds = 10
n_times = n_seconds * sfreq
n_channels = 16

# Simulate alpha rhythm (10 Hz) embedded in noise
alpha_freq = 10.0
times = np.arange(n_times) / sfreq

# Pink noise background
noise = np.cumsum(rng.standard_normal((n_channels, n_times)), axis=1)
noise = detrend(noise, axis=1)

# Alpha source
alpha_source = np.sin(2 * np.pi * alpha_freq * times)

# Mix into occipital channels
mixing = rng.standard_normal(n_channels) * 0.1
mixing[0:2] = [2.0, 1.5]  # Strong in channels 0, 1
alpha_component = np.outer(mixing, alpha_source)

data_alpha = noise + alpha_component

# Create MNE Raw with montage
ch_names = [
    "Oz",
    "O1",
    "O2",
    "Pz",
    "P3",
    "P4",
    "P7",
    "P8",
    "Cz",
    "C3",
    "C4",
    "Fz",
    "F3",
    "F4",
    "F7",
    "F8",
]
info = mne.create_info(ch_names, sfreq, "eeg")
montage = mne.channels.make_standard_montage("standard_1020")
info.set_montage(montage)
raw_alpha = mne.io.RawArray(data_alpha, info)

print(f"Simulated {n_seconds}s, {n_channels} channels, {sfreq} Hz")
print(f"Alpha at {alpha_freq} Hz (channels Oz, O1)")

--- Part 0: Single Frequency Extraction (PeakFilterBias) ---
Creating RawArray with float64 data, n_channels=16, n_times=2500
    Range : 0 ... 2499 =      0.000 ...     9.996 secs
Ready.
Simulated 10s, 16 channels, 250 Hz
Alpha at 10.0 Hz (channels Oz, O1)

Apply DSS with PeakFilterBias

peak_bias = PeakFilterBias(freq=alpha_freq, sfreq=sfreq, q_factor=30)
dss_peak = DSS(n_components=5, bias=peak_bias)
dss_peak.fit(raw_alpha)

print(f"\nDSS Eigenvalues: {dss_peak.eigenvalues_[:5]}")

sources_peak = dss_peak.transform(raw_alpha)

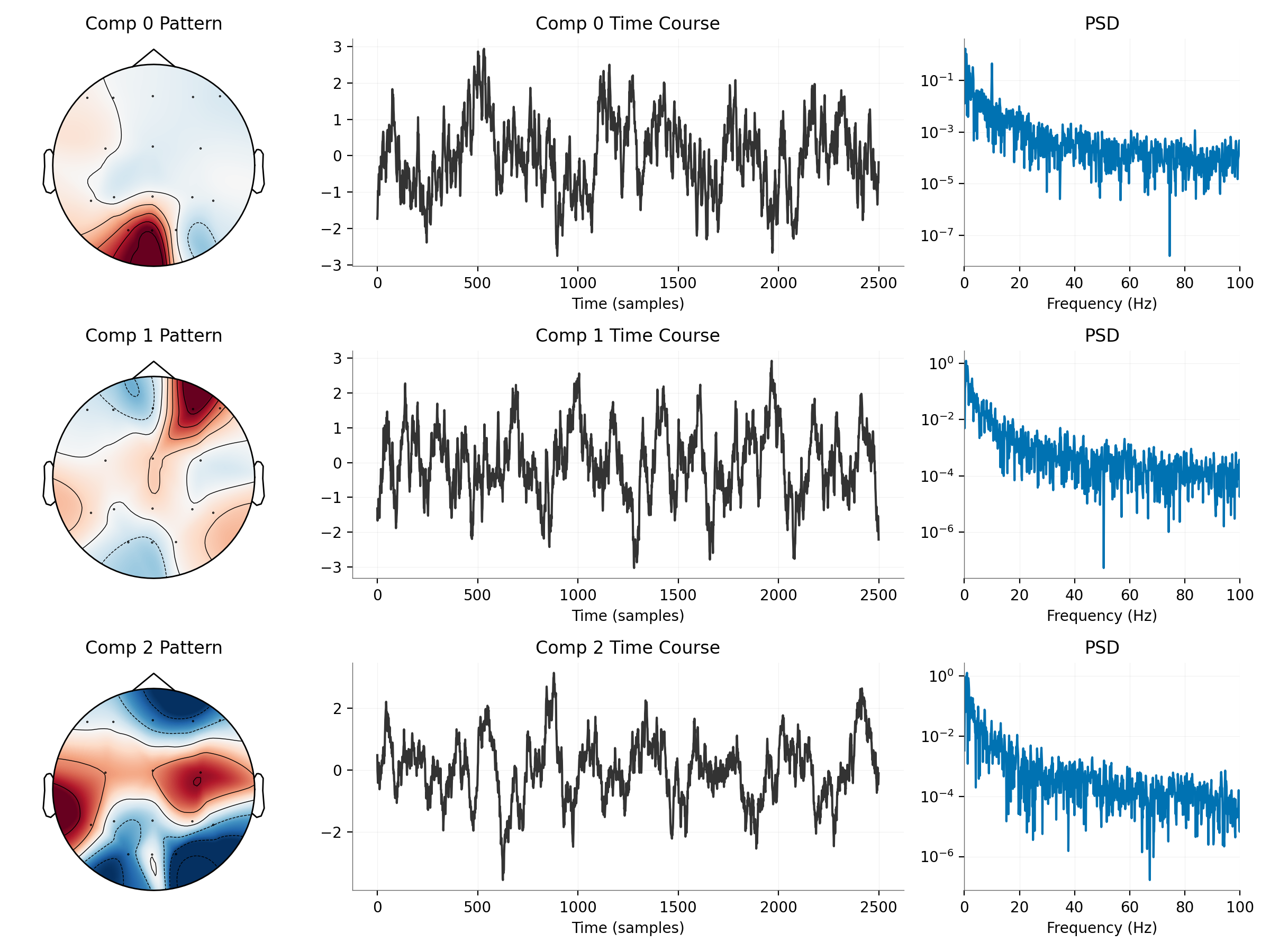

plot_component_summary(
    dss_peak,
    data=raw_alpha,
    info=raw_alpha.info,
    picks=np.arange(len(raw_alpha.ch_names)),
    n_components=3,
    show=False,
)
plt.show()

DSS Eigenvalues: [0.06418189 0.00324281 0.00217234 0.00153842 0.00127606]

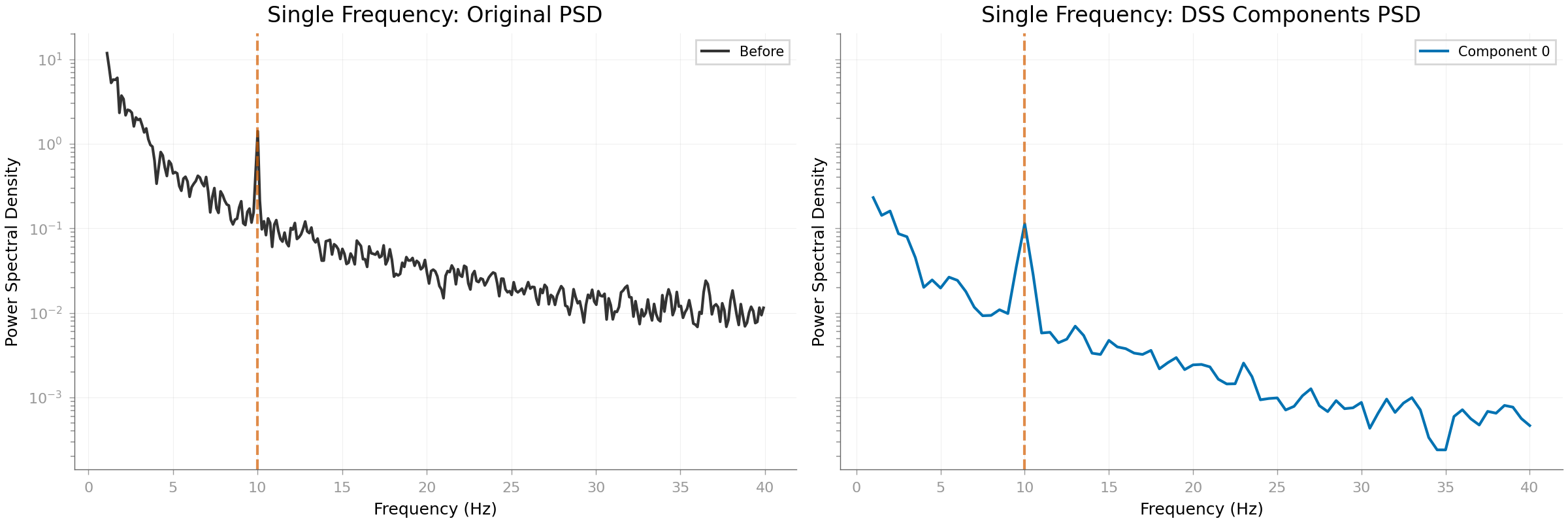

Comparison

plot_component_psd_comparison(
    raw_alpha,
    sources_peak,
    component_indices=[0],
    sfreq=sfreq,
    peak_freq=alpha_freq,
    show=False,
)
plt.gcf().axes[0].set_title("Single Frequency: Original PSD")
plt.gcf().axes[1].set_title("Single Frequency: DSS Components PSD")
plt.show()

Effective window size : 8.192 (s)

Part 1: SSVEP (CombFilterBias)

CombFilterBias filters fundamental + harmonics, ideal for SSVEP.

print("\n--- Part 1: SSVEP with Harmonics (CombFilterBias) ---")

# Simulate 12 Hz SSVEP with harmonics
f_stim = 12.0
ssvep_source = (
    1.0 * np.sin(2 * np.pi * f_stim * times)  # 12 Hz
    + 0.5 * np.sin(2 * np.pi * 2 * f_stim * times)  # 24 Hz
    + 0.2 * np.sin(2 * np.pi * 3 * f_stim * times)  # 36 Hz
)

noise_ssvep = np.cumsum(rng.standard_normal((n_channels, n_times)), axis=1)
noise_ssvep = detrend(noise_ssvep, axis=1)

ssvep_component = np.outer(mixing, ssvep_source)
data_ssvep = noise_ssvep + ssvep_component

raw_ssvep = mne.io.RawArray(data_ssvep, info)

print(f"SSVEP at {f_stim} Hz + harmonics (24, 36 Hz)")

--- Part 1: SSVEP with Harmonics (CombFilterBias) ---
Creating RawArray with float64 data, n_channels=16, n_times=2500
    Range : 0 ... 2499 =      0.000 ...     9.996 secs
Ready.
SSVEP at 12.0 Hz + harmonics (24, 36 Hz)

Method 1: Manual DSS + CombFilterBias

comb_bias = CombFilterBias(
    fundamental_freq=f_stim, sfreq=sfreq, n_harmonics=3, q_factor=30
)

dss_comb = DSS(n_components=5, bias=comb_bias)
dss_comb.fit(raw_ssvep)

print(f"\nManual DSS Eigenvalues: {dss_comb.eigenvalues_[:5]}")
print(f"Harmonic frequencies: {comb_bias.harmonic_frequencies}")

sources_comb = dss_comb.transform(raw_ssvep)

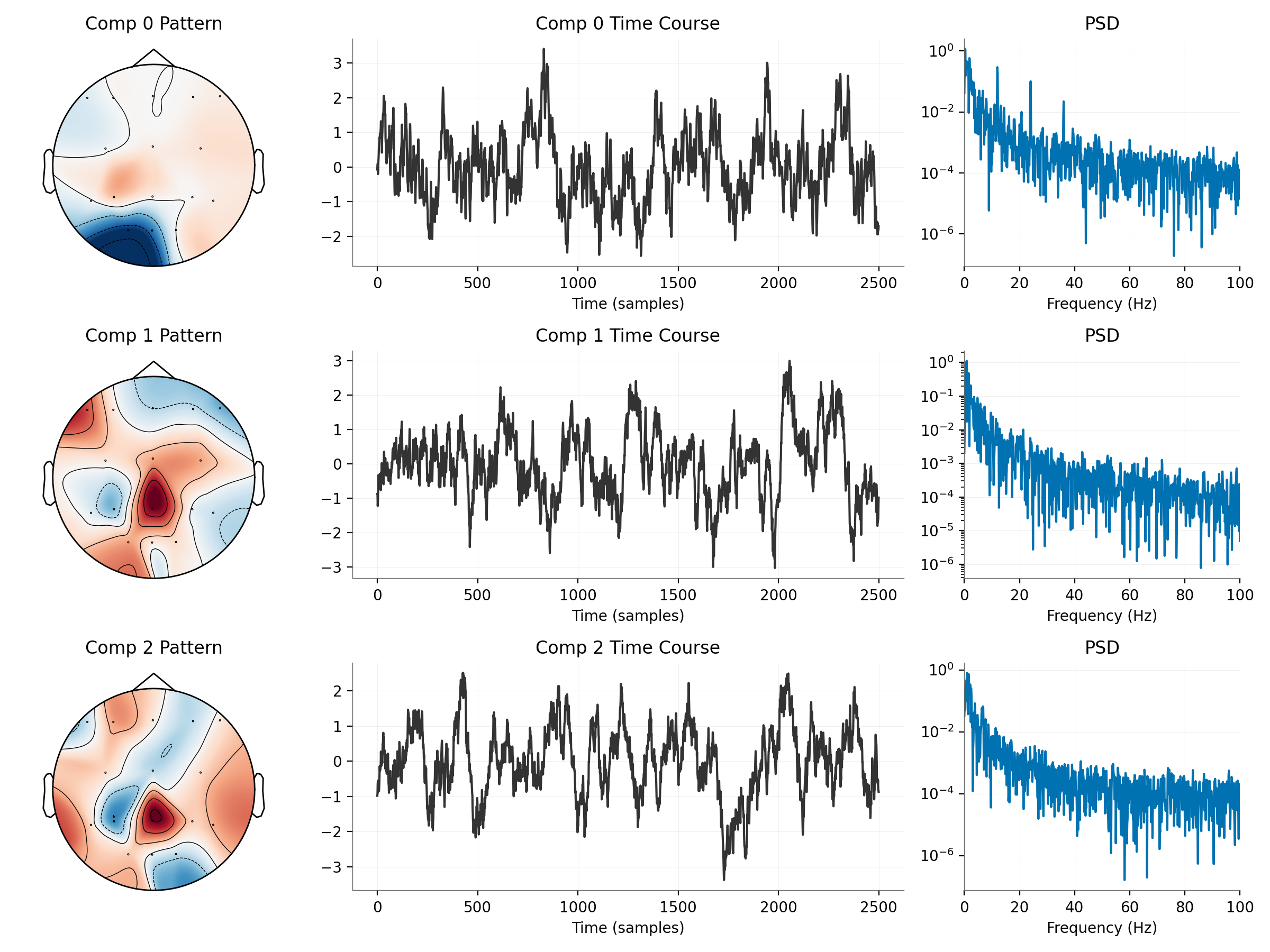

plot_component_summary(
    dss_comb,
    data=raw_ssvep,
    info=raw_ssvep.info,
    picks=np.arange(len(raw_ssvep.ch_names)),
    n_components=3,
    show=False,
)
plt.show()

Manual DSS Eigenvalues: [0.05223386 0.00278024 0.00195946 0.0015991  0.00076182]
Harmonic frequencies: [12.0, 24.0, 36.0]

Method 2: Convenience Wrapper (ssvep_dss)

Same result, simpler API

dss_wrapper = ssvep_dss(sfreq=sfreq, stim_freq=f_stim, n_harmonics=3, n_components=5)
dss_wrapper.fit(raw_ssvep)

print(f"\nWrapper DSS Eigenvalues: {dss_wrapper.eigenvalues_[:5]}")
print("(Should match manual approach)")

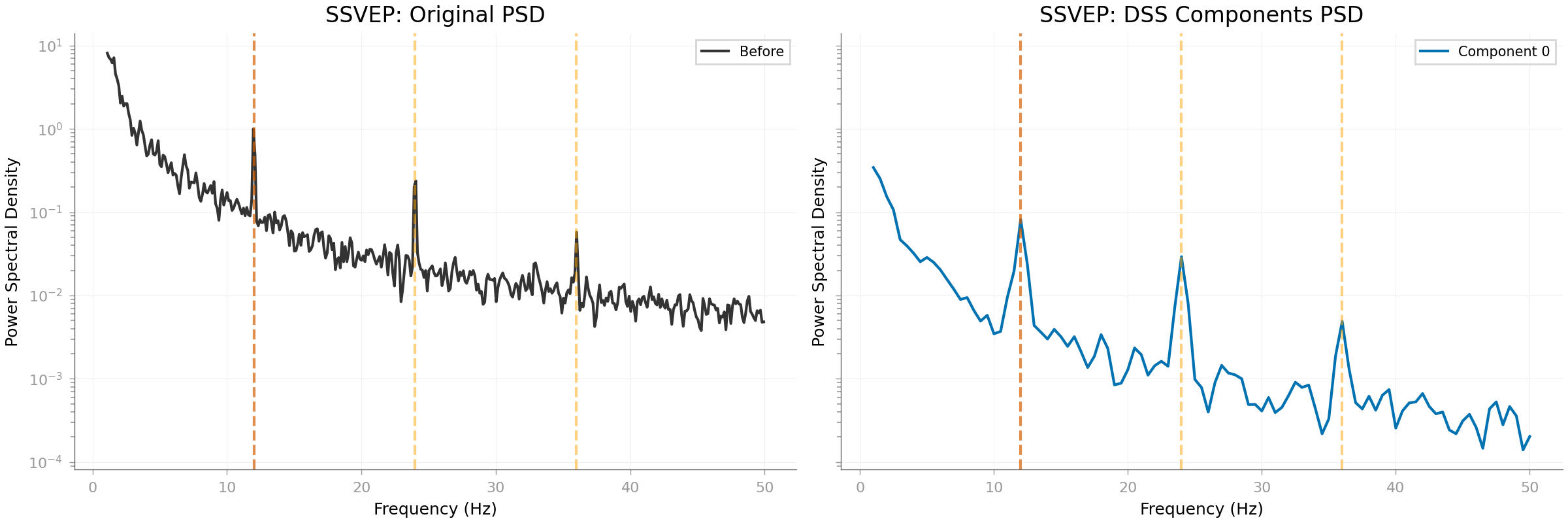

# PSD comparison
plot_component_psd_comparison(
    raw_ssvep,
    sources_comb,
    component_indices=[0],
    sfreq=sfreq,
    peak_freq=f_stim,
    fmax=50,
    show=False,
)
plt.gcf().axes[0].set_title("SSVEP: Original PSD")
plt.gcf().axes[1].set_title("SSVEP: DSS Components PSD")

# Mark harmonics
for ax in plt.gcf().axes:
    for h in [2, 3]:
        ax.axvline(f_stim * h, color="orange", linestyle="--", alpha=0.5)
plt.show()

Wrapper DSS Eigenvalues: [0.05223386 0.00278024 0.00195946 0.0015991  0.00076182]
(Should match manual approach)
Effective window size : 8.192 (s)

Part 2: Quasi-Periodic (Iterative DSS + Multi-Channel)

QuasiPeriodicDenoiser works with IterativeDSS for multi-channel spatial denoising.

print("\n--- Part 2: Quasi-Periodic Denoising (IterativeDSS) ---")

# Simulate multi-channel heartbeat-like signal
n_beats = 10
beat_interval = 0.8  # seconds (~75 BPM)
beat_samples = int(beat_interval * sfreq)

# Single beat template (QRS complex)
t_beat = np.linspace(0, 1, beat_samples)
beat_template = (
    -0.2 * np.exp(-((t_beat - 0.2) ** 2) / 0.001)  # Q wave
    + 1.0 * np.exp(-((t_beat - 0.25) ** 2) / 0.0005)  # R wave
    + -0.3 * np.exp(-((t_beat - 0.3) ** 2) / 0.001)  # S wave
    + 0.15 * np.exp(-((t_beat - 0.55) ** 2) / 0.005)  # T wave
)

# Multi-channel quasi-periodic signal
rng2 = np.random.default_rng(123)
n_times_qp = n_beats * beat_samples

# Different channels have different ECG strengths (spatial pattern)
ecg_mixing = np.array(
    [1.5, 1.2, 0.8, 0.5, 0.3, 0.2, 0.1, 0.1, 0.05, 0.05, 0.05, 0.0, 0.0, 0.0, 0.0, 0.0]
)

quasi_periodic_mc = np.zeros((n_channels, n_times_qp))

for i in range(n_beats):
    start_idx = i * beat_samples
    # Add variation per beat
    amplitude = 1.0 + rng2.normal(0, 0.1)
    time_jitter = rng2.integers(-10, 10)

    actual_start = max(0, start_idx + time_jitter)
    actual_end = min(n_times_qp, actual_start + beat_samples)
    beat_len = actual_end - actual_start

    # Mix into channels with different strengths
    for ch in range(n_channels):
        quasi_periodic_mc[ch, actual_start:actual_end] += (
            ecg_mixing[ch] * amplitude * beat_template[:beat_len]
        )

# Add noise
noisy_qp_mc = quasi_periodic_mc + 0.3 * rng2.standard_normal((n_channels, n_times_qp))

# Create Raw
ch_names_short = ch_names  # Reuse
info_qp = mne.create_info(ch_names_short, sfreq, "eeg")
info_qp.set_montage(montage)
raw_qp = mne.io.RawArray(noisy_qp_mc, info_qp)

print(f"Multi-channel quasi-periodic: {n_channels} channels, {n_beats} beats")

--- Part 2: Quasi-Periodic Denoising (IterativeDSS) ---
Creating RawArray with float64 data, n_channels=16, n_times=2000
    Range : 0 ... 1999 =      0.000 ...     7.996 secs
Ready.
Multi-channel quasi-periodic: 16 channels, 10 beats

Comparison: Single-Channel vs Multi-Channel Denoising

First, apply QuasiPeriodicDenoiser to a single channel (no spatial info).

qp_denoiser_single = QuasiPeriodicDenoiser(
    peak_distance=int(beat_interval * sfreq * 0.7),
    peak_height_percentile=70,
    smooth_template=True,
)

# Denoise channel 0 only (strongest ECG)
denoised_single = qp_denoiser_single.denoise(noisy_qp_mc[0])

print("\nSingle-channel denoising: Uses only temporal information from 1 channel")

Single-channel denoising: Uses only temporal information from 1 channel

Apply IterativeDSS with QuasiPeriodicDenoiser

Now use spatial information from all channels.

qp_denoiser = QuasiPeriodicDenoiser(
    peak_distance=int(beat_interval * sfreq * 0.7),
    peak_height_percentile=70,
    smooth_template=True,
)

idss_qp = IterativeDSS(n_components=3, denoiser=qp_denoiser, max_iter=3)

idss_qp.fit(raw_qp)

sources_qp = idss_qp.transform(raw_qp)

print(f"\nIterativeDSS converged in {len(idss_qp.convergence_info_)} iterations")
print("Multi-channel denoising: Uses spatial + temporal information")

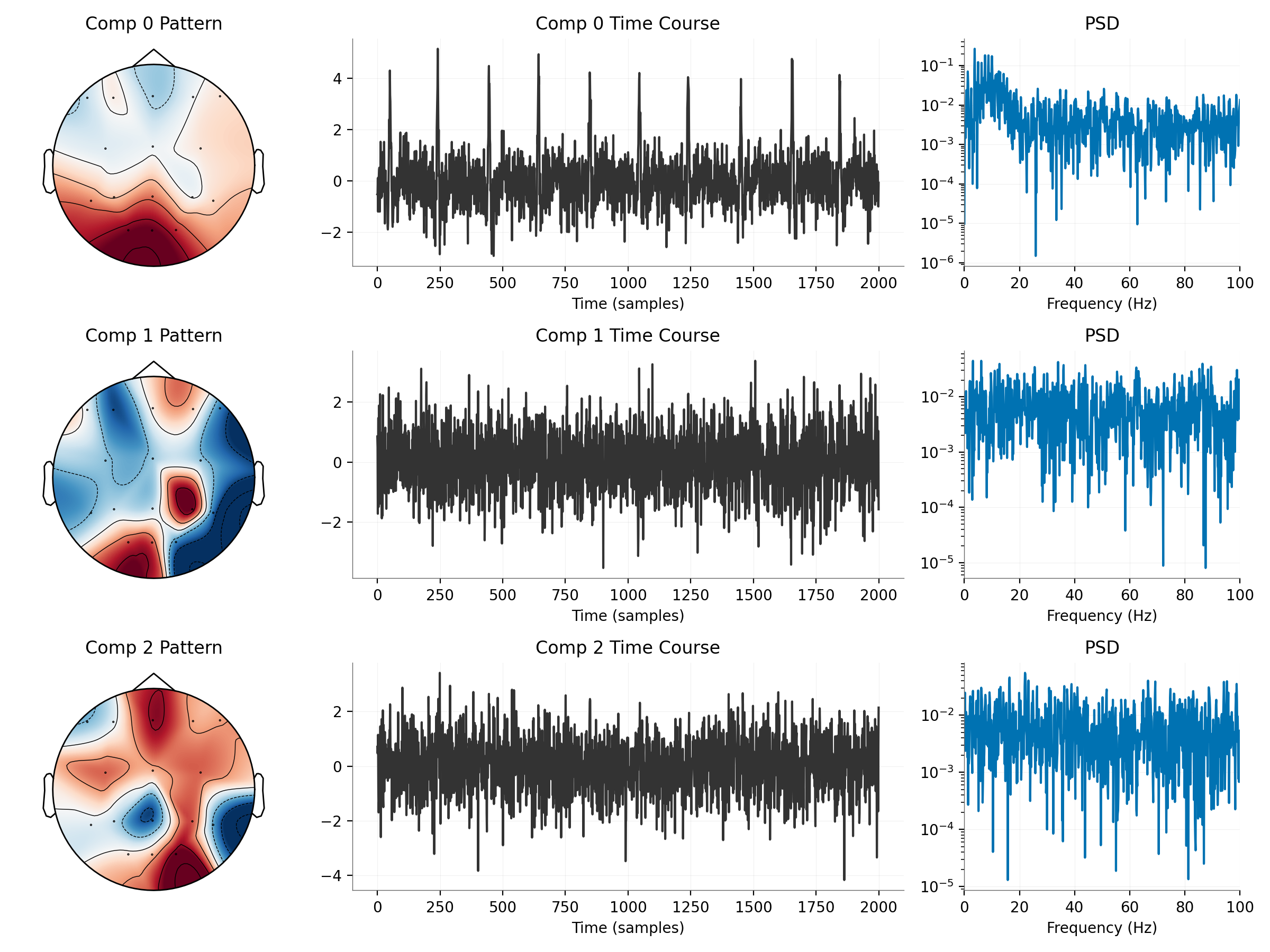

plot_component_summary(
    idss_qp,
    data=raw_qp,
    info=raw_qp.info,
    picks=np.arange(len(raw_qp.ch_names)),
    n_components=3,
    show=False,
)
plt.show()

IterativeDSS converged in 3 iterations
Multi-channel denoising: Uses spatial + temporal information

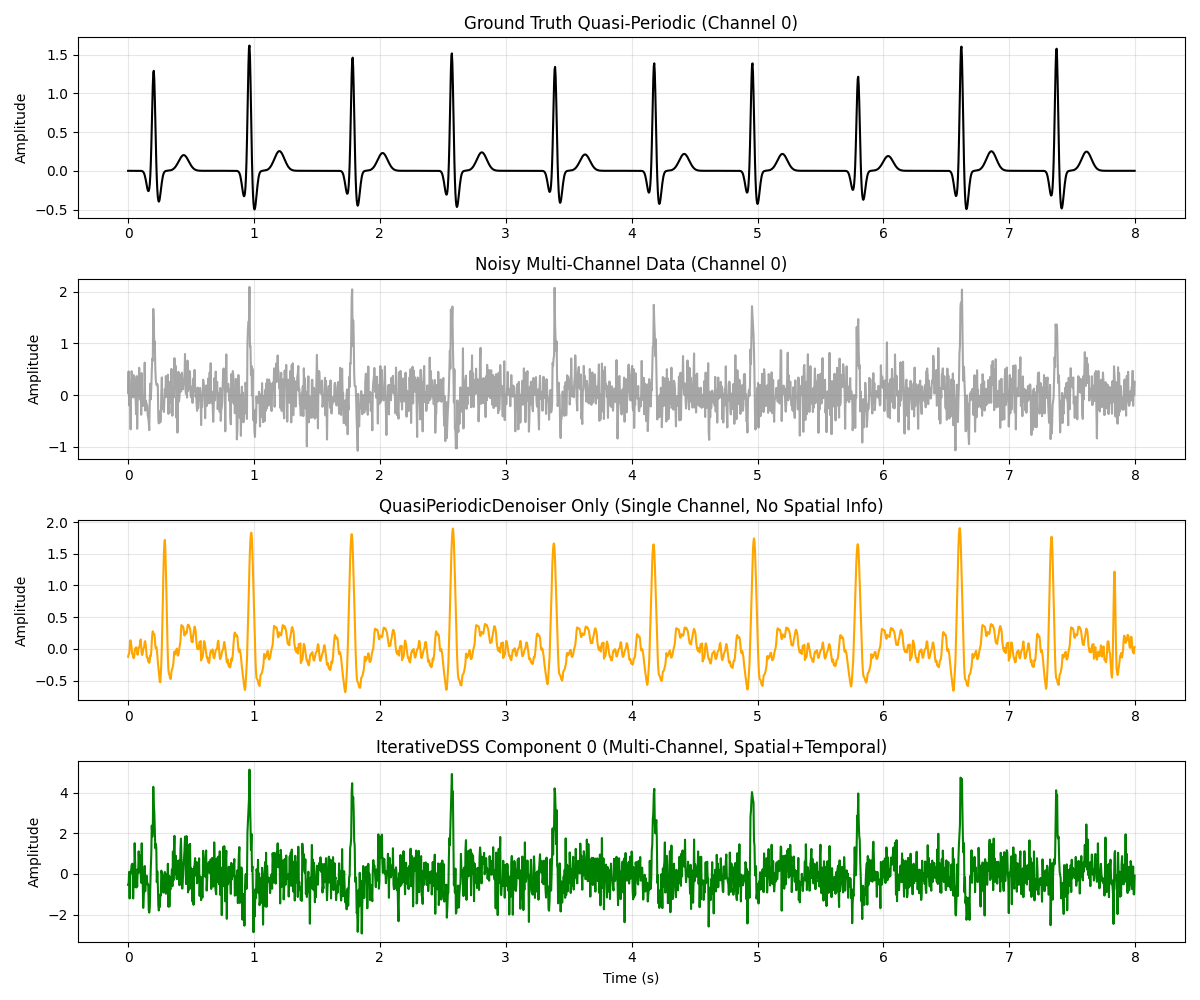

Visualize Comparison: Single-Channel vs Multi-Channel

t_qp = np.arange(n_times_qp) / sfreq

fig, axes = plt.subplots(4, 1, figsize=(12, 10))

# Ground truth
axes[0].plot(t_qp, quasi_periodic_mc[0], "k", linewidth=1.5)
axes[0].set_title("Ground Truth Quasi-Periodic (Channel 0)")
axes[0].set_ylabel("Amplitude")
axes[0].grid(True, alpha=0.3)

# Noisy
axes[1].plot(t_qp, noisy_qp_mc[0], "gray", alpha=0.7)
axes[1].set_title("Noisy Multi-Channel Data (Channel 0)")
axes[1].set_ylabel("Amplitude")
axes[1].grid(True, alpha=0.3)

# Single-channel denoising
axes[2].plot(t_qp, denoised_single, "orange", linewidth=1.5)
axes[2].set_title("QuasiPeriodicDenoiser Only (Single Channel, No Spatial Info)")
axes[2].set_ylabel("Amplitude")
axes[2].grid(True, alpha=0.3)

# IterativeDSS component (spatial + temporal)
axes[3].plot(t_qp, sources_qp[0], "green", linewidth=1.5)
axes[3].set_title("IterativeDSS Component 0 (Multi-Channel, Spatial+Temporal)")
axes[3].set_xlabel("Time (s)")
axes[3].set_ylabel("Amplitude")
axes[3].grid(True, alpha=0.3)

plt.tight_layout()
plt.show()

Quantitative Comparison

# Compute correlation with ground truth
corr_single = np.corrcoef(quasi_periodic_mc[0], denoised_single)[0, 1]
corr_multi = np.corrcoef(quasi_periodic_mc[0], sources_qp[0])[0, 1]


# Compute SNR improvement
def compute_snr(signal, noise):
    return 10 * np.log10(np.var(signal) / np.var(noise))


noise_orig = noisy_qp_mc[0] - quasi_periodic_mc[0]
noise_single = denoised_single - quasi_periodic_mc[0]
noise_multi = sources_qp[0] - quasi_periodic_mc[0]

snr_orig = compute_snr(quasi_periodic_mc[0], noise_orig)
snr_single = compute_snr(quasi_periodic_mc[0], noise_single)
snr_multi = compute_snr(quasi_periodic_mc[0], noise_multi)

print("\n--- Performance Comparison ---")
print("Correlation with ground truth:")
print(f"  Single-channel denoiser: {corr_single:.3f}")
print(f"  IterativeDSS (multi-ch):  {corr_multi:.3f}")
print("\nSNR (dB):")
print(f"  Original:                {snr_orig:.1f}")
print(f"  Single-channel denoiser: {snr_single:.1f} (+{snr_single - snr_orig:.1f})")
print(f"  IterativeDSS (multi-ch): {snr_multi:.1f} (+{snr_multi - snr_orig:.1f})")
print(
    f"\nIterativeDSS improvement: +{snr_multi - snr_single:.1f} dB over single-channel"
)

--- Performance Comparison ---
Correlation with ground truth:
  Single-channel denoiser: 0.593
  IterativeDSS (multi-ch):  0.696

SNR (dB):
  Original:                -1.6
  Single-channel denoiser: -1.9 (+-0.3)
  IterativeDSS (multi-ch): -10.4 (+-8.8)

IterativeDSS improvement: +-8.5 dB over single-channel

Part 3: Real ECG Artifact (Single-Channel Denoising)

For real data, we demonstrate single-channel QuasiPeriodicDenoiser. (Multi-channel IterativeDSS is already shown in Part 2 with synthetic data)

print("\n--- Part 3: Real ECG Artifact (Sample Dataset) ---")

from mne.datasets import sample

data_path = sample.data_path()
raw_fname = data_path / "MEG" / "sample" / "sample_audvis_raw.fif"

raw_ecg = mne.io.read_raw_fif(raw_fname, preload=True, verbose=False)
raw_ecg.pick_types(meg="grad", eog=False, stim=False, exclude="bads")
raw_ecg.filter(0.5, 30, fir_design="firwin", verbose=False)
raw_ecg.crop(10, 30)  # 20 seconds

print(f"MEG Data: {len(raw_ecg.ch_names)} channels, {raw_ecg.times[-1]:.1f}s")

# Select channel with ECG artifact
channel_data = raw_ecg.get_data()[0]

--- Part 3: Real ECG Artifact (Sample Dataset) ---
NOTE: pick_types() is a legacy function. New code should use inst.pick(...).
MEG Data: 203 channels, 20.0s

Apply QuasiPeriodicDenoiser to Single Channel

ecg_denoiser = QuasiPeriodicDenoiser(
    peak_distance=int(0.6 * raw_ecg.info["sfreq"]),  # ~100 BPM
    peak_height_percentile=85,
    smooth_template=True,
)

denoised_channel = ecg_denoiser.denoise(channel_data)

print("Applied QuasiPeriodicDenoiser to MEG channel")

Applied QuasiPeriodicDenoiser to MEG channel

Visualize Results with Viz Module

# Create Raw objects for viz functions
raw_channel = mne.io.RawArray(
    channel_data[np.newaxis, :], mne.create_info(1, raw_ecg.info["sfreq"], "eeg")
)
raw_denoised = mne.io.RawArray(
    denoised_channel[np.newaxis, :], mne.create_info(1, raw_ecg.info["sfreq"], "eeg")
)

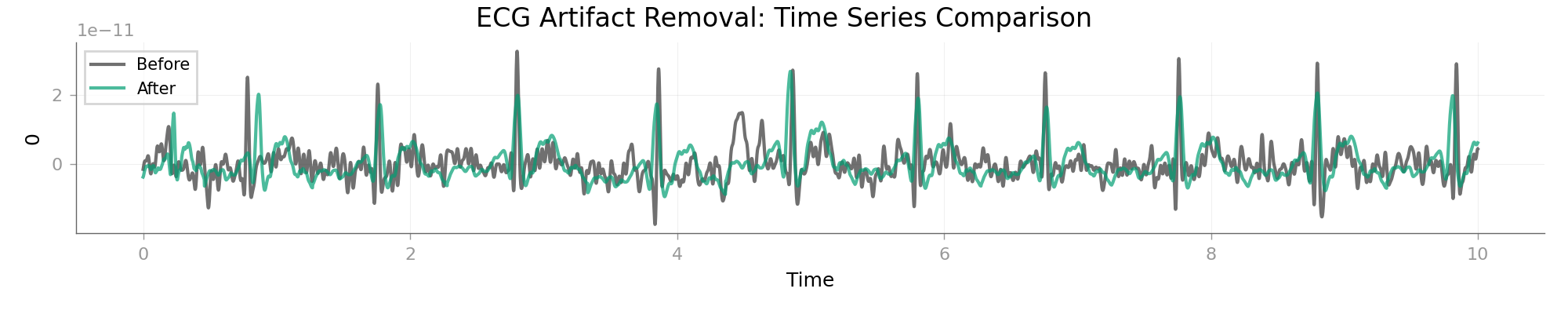

# Time series comparison
plot_channel_time_course_comparison(
    raw_channel,
    raw_denoised,
    picks=[0],
    times=raw_channel.times,
    start=0,
    stop=int(10 * raw_channel.info["sfreq"]),  # First 10 seconds
    show=False,
)
plt.gcf().suptitle("ECG Artifact Removal: Time Series Comparison")
plt.show()

Creating RawArray with float64 data, n_channels=1, n_times=12013
    Range : 0 ... 12012 =      0.000 ...    20.000 secs
Ready.
Creating RawArray with float64 data, n_channels=1, n_times=12013
    Range : 0 ... 12012 =      0.000 ...    20.000 secs
Ready.

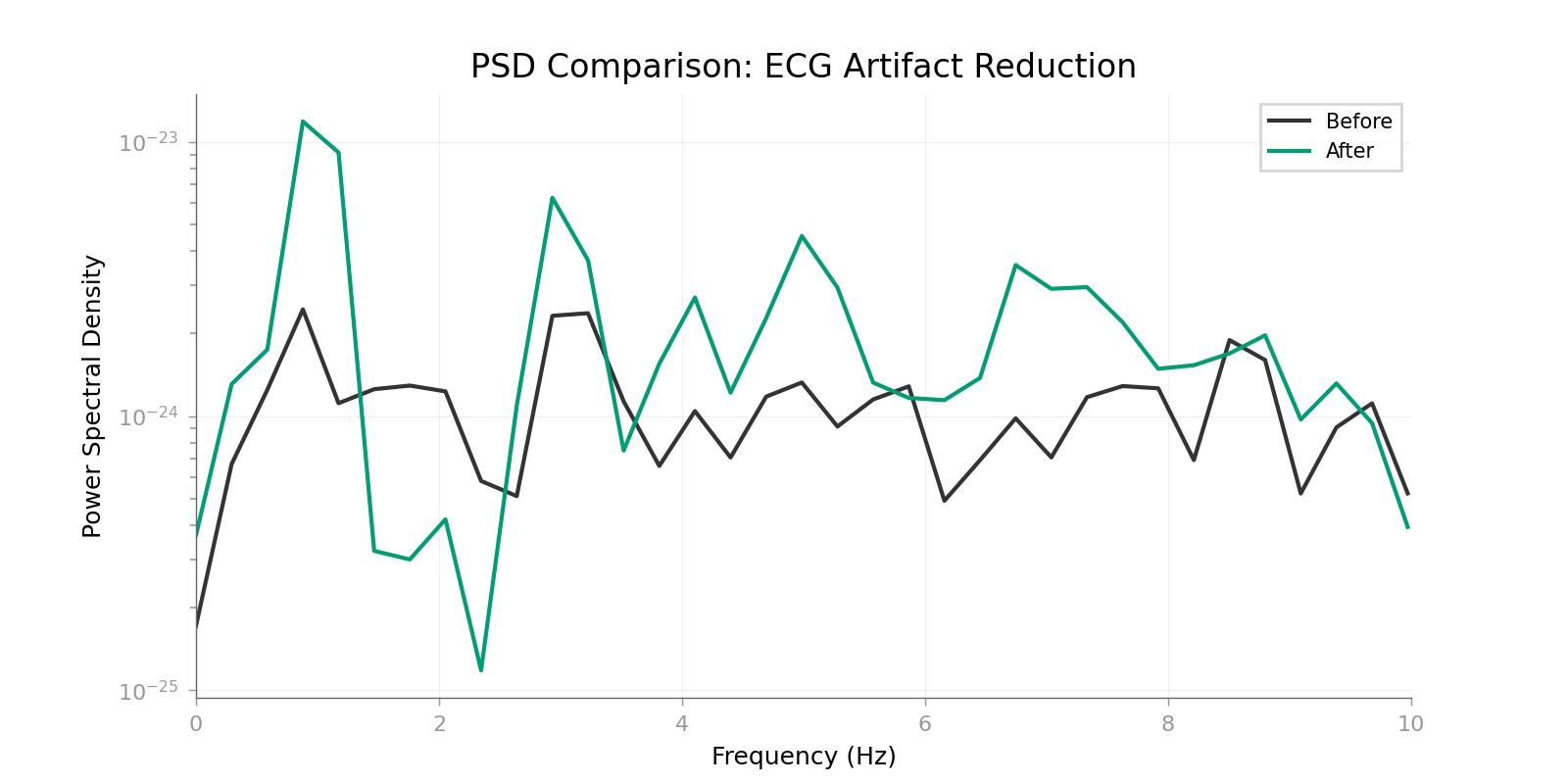

PSD comparison

plot_psd_comparison(raw_channel, raw_denoised, fmin=0, fmax=10, show=False)
plt.gcf().axes[0].set_title("PSD Comparison: ECG Artifact Reduction")
plt.show()

Effective window size : 3.410 (s)
Effective window size : 3.410 (s)
