ZapLine-plus: Advanced Settings and Features.

This example focuses on the extra adaptive features around the core ZapLine step: harmonic handling, chunk metadata, and the hybrid fallback path when a plain component projection is not enough.

Authors: Sina Esmaeili (sina.esmaeili@umontreal.ca)

import matplotlib.pyplot as plt
import numpy as np
from scipy import signal

from mne_denoise.viz import plot_psd_comparison
from mne_denoise.zapline import ZapLine
from mne_denoise.zapline.adaptive import detect_harmonics

Simulate Data with Harmonics

Create a signal with fundamental (50 Hz) plus two harmonics (100, 150 Hz).

print("=== ZapLine-plus Advanced Features Demo ===\n")

sfreq = 500  # High enough to capture harmonics
n_ch = 32
duration = 60
n_times = int(duration * sfreq)
times = np.arange(n_times) / sfreq

rng = np.random.RandomState(42)

# Brain signal (pink noise)
brain = rng.randn(n_ch, n_times) * 0.5

# Line noise with harmonics
fundamental = 50.0
harmonics = [100.0, 150.0]  # 2f, 3f

# Create spatial topographies for each frequency
topos = []
for i in range(3):
    topo = rng.randn(n_ch)
    topo /= np.linalg.norm(topo)
    topos.append(topo)

# Add noise at each frequency
noise = np.zeros((n_ch, n_times))
freqs = [fundamental] + harmonics
amplitudes = [5.0, 2.0, 1.0]  # Decreasing amplitude for harmonics

for freq, amp, topo in zip(freqs, amplitudes, topos):
    ts = np.sin(2 * np.pi * freq * times) * amp
    noise += np.outer(topo, ts)

data = brain + noise

print(f"Data: {n_ch} channels × {n_times} samples ({duration}s)")
print(f"Frequencies: {freqs} Hz with amplitudes {amplitudes}")

=== ZapLine-plus Advanced Features Demo ===

Data: 32 channels × 30000 samples (60s)
Frequencies: [50.0, 100.0, 150.0] Hz with amplitudes [5.0, 2.0, 1.0]

Step 1: Detect Harmonics

The detect_harmonics function explicitly finds harmonics present in data.

print("\n--- Step 1: Harmonic Detection ---")
detected = detect_harmonics(data, sfreq, fundamental)
print(f"Fundamental: {fundamental} Hz")
print(f"Detected harmonics: {detected}")

--- Step 1: Harmonic Detection ---
Fundamental: 50.0 Hz
Detected harmonics: [100.0, 150.0]

Step 2: Apply ZapLine-plus with Harmonic Processing

Enable process_harmonics=True to automatically clean harmonics.

print("\n--- Step 2: ZapLine-plus with Harmonics ---")
zapline = ZapLine(
    sfreq=sfreq,
    line_freq=None,  # Auto-detect
    adaptive=True,
    adaptive_params={
        "process_harmonics": True,
        "max_harmonics": 3,
        "hybrid_fallback": True,
        "fmin": 45,
        "fmax": 55,
    },
)
cleaned = zapline.fit_transform(data)
result = zapline.adaptive_results_

data_clean = result["cleaned"]
print("Cleaning complete!")
print(f"Chunk info entries: {len(result['chunk_info'])}")
# print(f"Topography entries: {len(result['removed_topographies'])}")

--- Step 2: ZapLine-plus with Harmonics ---
Cleaning complete!
Chunk info entries: 3

Step 3: Examine Per-Chunk Metadata

The chunk_info contains detailed information for each segment processed.

print("\n--- Step 3: Chunk Metadata ---")
for i, info in enumerate(result["chunk_info"]):
    print(f"Chunk {i + 1}:")
    print(f"  Frequency: {info['fine_freq']:.2f} Hz")
    print(f"  Time range: {info['start'] / sfreq:.1f}s - {info['end'] / sfreq:.1f}s")
    print(f"  Components removed: {info['n_removed']}")
    print(f"  Artifact present: {info['artifact_present']}")

--- Step 3: Chunk Metadata ---
Chunk 1:
  Frequency: 50.00 Hz
  Time range: 0.0s - 60.0s
  Components removed: 3
  Artifact present: True
Chunk 2:
  Frequency: 99.95 Hz
  Time range: 0.0s - 60.0s
  Components removed: 0
  Artifact present: False
Chunk 3:
  Frequency: 149.95 Hz
  Time range: 0.0s - 60.0s
  Components removed: 0
  Artifact present: False

Step 4: Visualize Removed Topographies

Chunk-wise metadata are often more informative than a single global summary when the contamination changes over time.

print("\n--- Step 4: Topography Outputs ---")
# (To support this, we would need to store `est.patterns_` from each chunk pass)

--- Step 4: Topography Outputs ---

Step 5: Compare Spectra

Visualize noise reduction at fundamental and harmonics.

print("\n--- Step 5: Spectral Comparison ---")

# Use our reusable viz function for a quick overview
plot_psd_comparison(
    data, data_clean, sfreq=sfreq, line_freq=fundamental, fmax=180, show=True
)

--- Step 5: Spectral Comparison ---

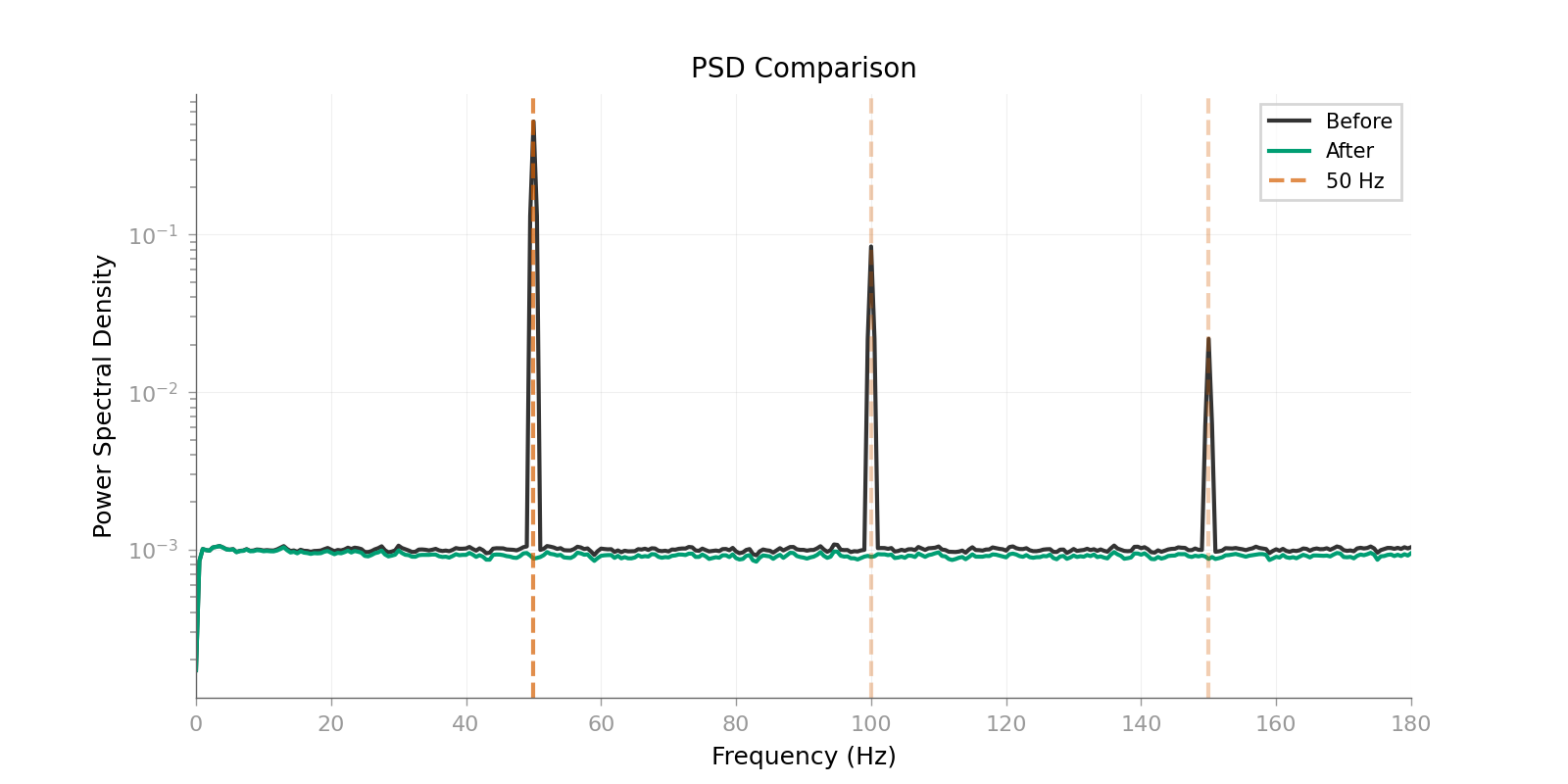

<Figure size 1600x800 with 1 Axes>

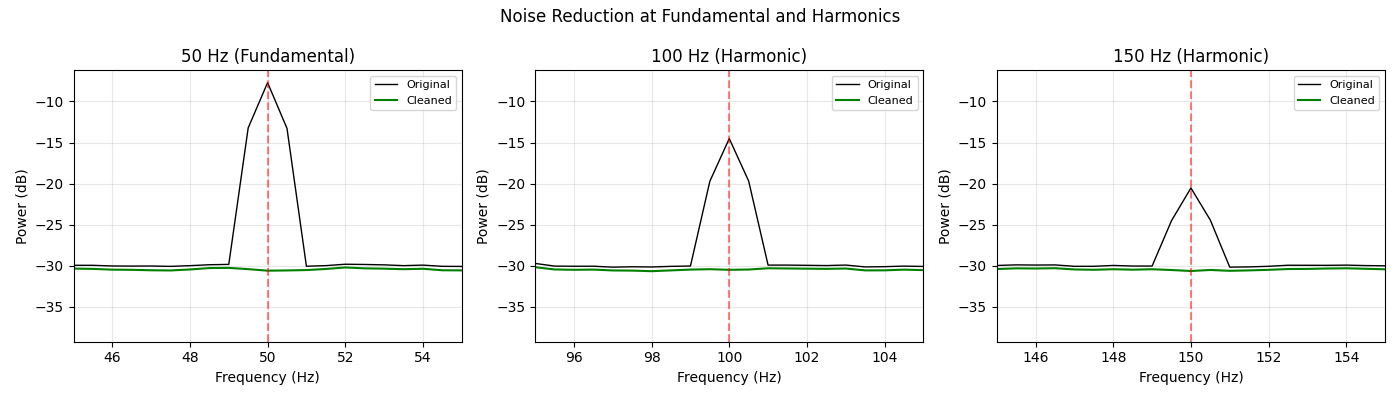

Detailed Harmonic Comparison

Detailed per-frequency comparison makes it easier to check that harmonics drop together rather than leaving isolated residual peaks.

fig, axes = plt.subplots(1, 3, figsize=(14, 4))

for i, (freq, ax) in enumerate(zip(freqs, axes)):
    f_o, psd_o = signal.welch(data, fs=sfreq, nperseg=int(sfreq * 2), axis=-1)
    f_c, psd_c = signal.welch(data_clean, fs=sfreq, nperseg=int(sfreq * 2), axis=-1)

    psd_o_mean = np.mean(10 * np.log10(psd_o + 1e-20), axis=0)
    psd_c_mean = np.mean(10 * np.log10(psd_c + 1e-20), axis=0)

    ax.plot(f_o, psd_o_mean, "k-", label="Original", lw=1)
    ax.plot(f_c, psd_c_mean, "g-", label="Cleaned", lw=1.5)
    ax.set_xlim(freq - 5, freq + 5)
    ax.axvline(freq, color="r", ls="--", alpha=0.5)
    ax.set_xlabel("Frequency (Hz)")
    ax.set_ylabel("Power (dB)")
    ax.set_title(f"{int(freq)} Hz {'(Fundamental)' if i == 0 else '(Harmonic)'}")
    ax.legend(fontsize=8)
    ax.grid(True, alpha=0.3)

plt.suptitle("Noise Reduction at Fundamental and Harmonics")
plt.tight_layout()
plt.show()

Step 6: Hybrid Fallback Demo

When ZapLine alone can’t clean fully, hybrid_fallback applies a notch.

print("\n--- Step 6: Quantitative Results ---")
# Calculate noise power reduction
for freq in freqs:
    mask = (f_o > freq - 0.5) & (f_o < freq + 0.5)
    pow_o = np.mean(psd_o[:, mask])
    pow_c = np.mean(psd_c[:, mask])
    reduction_db = 10 * np.log10(pow_o / max(pow_c, 1e-20))
    print(f"{int(freq):>3} Hz: {reduction_db:.1f} dB reduction")

print("\n[OK] Advanced features demo complete!")

--- Step 6: Quantitative Results ---
 50 Hz: 27.7 dB reduction
100 Hz: 19.7 dB reduction
150 Hz: 14.0 dB reduction

[OK] Advanced features demo complete!
