Artifact Subspace Reconstruction: Raw QC and Annotations.

This example shows ASR on an mne.io.RawArray with optional clean_windows- style final window rejection. The repaired spans and rejected spans are kept as annotations for downstream QC instead of deleting samples immediately.

Imports

import matplotlib.pyplot as plt
import mne
import numpy as np

from mne_denoise.asr import ASR
from mne_denoise.viz import plot_signal_overlay

Synthetic Raw

sfreq = 250.0
duration = 15.0
n_eeg = 8
n_times = int(sfreq * duration)
times = np.arange(n_times) / sfreq
rng = np.random.default_rng(7)

brain = np.zeros((n_eeg, n_times))
for ch_idx in range(n_eeg):
    phase = rng.uniform(0, 2 * np.pi)
    brain[ch_idx] = (
        0.4 * np.sin(2 * np.pi * 10 * times + phase)
        + 0.15 * np.sin(2 * np.pi * 6 * times + 0.5 * phase)
        + 0.04 * rng.standard_normal(n_times)
    )

eog = 0.25 * np.sin(2 * np.pi * 1.2 * times)[np.newaxis, :]
data = brain.copy()
spatial = rng.standard_normal((n_eeg, 2))
spatial /= np.linalg.norm(spatial, axis=0, keepdims=True)

for onset, stop in ((4.5, 5.3), (9.0, 9.7), (12.0, 12.6)):
    start = int(onset * sfreq)
    end = int(stop * sfreq)
    data[:, start:end] += spatial @ (7.0 * rng.standard_normal((2, end - start)))

raw_data = np.vstack([data, eog])
ch_names = [f"EEG {idx:02d}" for idx in range(n_eeg)] + ["EOG 01"]
ch_types = ["eeg"] * n_eeg + ["eog"]
info = mne.create_info(ch_names, sfreq, ch_types)
raw = mne.io.RawArray(raw_data, info, verbose=False)

Fit and Apply ASR

asr = ASR(
    cutoff=5.0,
    calibration="auto",
    picks="eeg",
    filter_kind="none",
    window_criterion=0.25,
    window_criterion_tolerances=(-np.inf, 2.5),
    verbose=False,
)
raw_clean = asr.fit_transform(raw)
repair_annotations = asr.to_annotations()
reject_annotations = asr.to_annotations("rejection")

print(f"Repaired sample fraction: {asr.fraction_reconstructed_samples_:.2%}")
print(
    "Retained after final window rejection: "
    f"{asr.fraction_retained_after_window_rejection_:.2%}"
)

Repaired sample fraction: 52.08%
Retained after final window rejection: 86.67%

Plot One EEG Channel

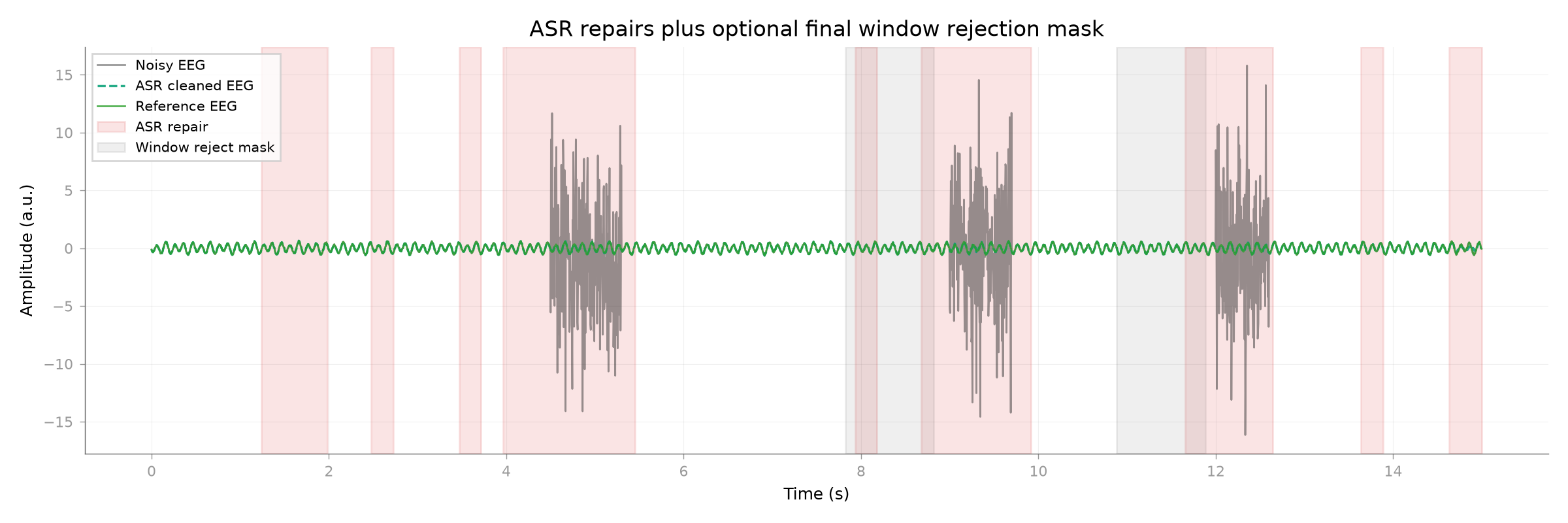

The repair and rejection annotations are passed straight to plot_signal_overlay as highlight_spans instead of shading the axis by hand; the reference trace uses the reference argument.

channel = "EEG 00"
noisy = raw.get_data(picks=[channel])[0]
clean = raw_clean.get_data(picks=[channel])[0]

spans = [
    {
        "onset": onset,
        "duration": dur,
        "color": "C3",
        "alpha": 0.12,
        "label": "ASR repair",
    }
    for onset, dur in zip(repair_annotations.onset, repair_annotations.duration)
] + [
    {
        "onset": onset,
        "duration": dur,
        "color": "0.2",
        "alpha": 0.08,
        "label": "Window reject mask",
    }
    for onset, dur in zip(reject_annotations.onset, reject_annotations.duration)
]

plot_signal_overlay(
    noisy,
    clean,
    times,
    scale_after=False,
    before_label="Noisy EEG",
    after_label="ASR cleaned EEG",
    x_label="Time (s)",
    y_label="Amplitude (a.u.)",
    title="ASR repairs plus optional final window rejection mask",
    reference=brain[0],
    reference_label="Reference EEG",
    highlight_spans=spans,
    show=False,
)

plt.show()
