Reading BCI2000 files

In this example, we use MNE-Python to read a BCI2000 .dat file. BCI2000 is a general-purpose brain-computer interface (BCI) system widely used in EEG research. The file is downloaded from the MNE testing data repository using pooch.

# Authors: The MNE-Python contributors.
# License: BSD-3-Clause
# Copyright the MNE-Python contributors.

import pooch

import mne

First, we download the sample BCI2000 .dat file using pooch.

data_dir = mne.datasets.default_path() / "bci2k_data"
data_dir.mkdir(exist_ok=True)

fname = pooch.retrieve(
    url="https://raw.githubusercontent.com/mne-tools/mne-testing-data/master/BCI2k/bci2k_test.dat",
    known_hash="sha256:8efc7b5f700660a044086cb1449806ca408c2e6d32d9338c32e1bf31ce3ca9cb",
    path=data_dir,
)

Using default location ~/mne_data...

Now we can read the file using mne.io.read_raw_bci2k(). Note that preload=True is required for BCI2000 files.

raw = mne.io.read_raw_bci2k(fname, preload=True)
print(raw.info)

<Info | 7 non-empty values
 bads: []
 ch_names: EEG1, EEG2, STI 014
 chs: 2 EEG, 1 Stimulus
 custom_ref_applied: False
 highpass: 0.0 Hz
 lowpass: 128.0 Hz
 meas_date: unspecified
 nchan: 3
 projs: []
 sfreq: 256.0 Hz
>

We can inspect the object representation, channel names, types, sampling frequency, and recording duration.

print(raw)
print(f"Channel names : {raw.ch_names}")
print(f"Channel types : {raw.get_channel_types()}")
print(f"Sampling freq : {raw.info['sfreq']} Hz")
print(f"Duration      : {raw.times[-1]:.2f} s")
print(f"n_channels    : {raw.info['nchan']}")
print(f"Data shape    : {raw.get_data().shape}  (n_channels, n_samples)")

<RawBCI2k | e5d7337a8476d2c2629d5156efe5788c-bci2k_test.dat, 3 x 9248 (36.1 s), ~223 KiB, data loaded>
Channel names : ['EEG1', 'EEG2', 'STI 014']
Channel types : ['eeg', 'eeg', 'stim']
Sampling freq : 256.0 Hz
Duration      : 36.12 s
n_channels    : 3
Data shape    : (3, 9248)  (n_channels, n_samples)

If the BCI2000 file contains a StimulusCode state, it is automatically mapped to a STI 014 stim channel. We can extract events from it using mne.find_events().

if "STI 014" in raw.ch_names:
    events = mne.find_events(raw, shortest_event=1)
    print(f"Found {len(events)} events")
    print(mne.count_events(events))
else:
    print("No stim channel found in this file.")

Finding events on: STI 014
Found 0 events
{}

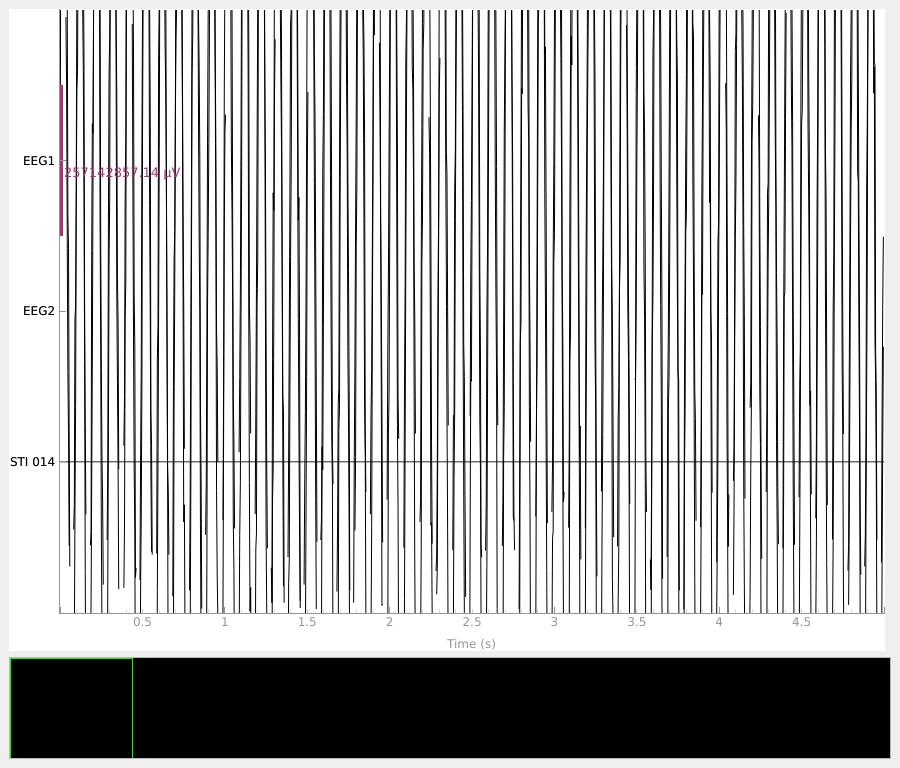

Finally, we can visualize the raw data.

raw.plot(duration=5, n_channels=len(raw.ch_names), scalings="auto")
